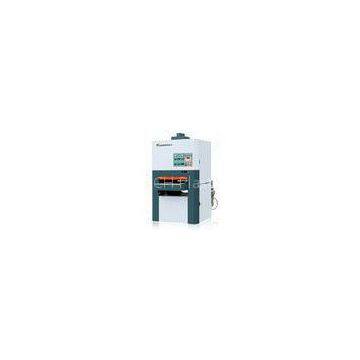

7.5 kw Auxiliary machine can be solid wood doors , plywood , particle board 1000mm

Delivery Time:60 days after perpayment
Certification:ISO9001-2000；CE

7.5 kw Auxiliary machine can be solid wood doors , plywood , particle board 1000mm

Quick Detail:

The Auxiliary machine for PVC pipe production line is mechanotronics, with the advantages of:

1) high production efficiency;

2) reasonable structure compact;

3) convenient operation and maintenance

4) long use life etc.

Description:

The machine can be solid wood doors, plywood, particle board, cement board, fiberboard, and integrated panels, frames, and other kinds of sheet metal for strength and thickness sanding, fine sanding. The machine consists of frame, feeding device, lifting devices, electrical devices and automatic control device components. The machine has two fixed roll a thick sanding pad, sanding pad can work alone, more detailed processing of the plate surface, more efficient

Working Width (mm)	1000
Working Thickness (mm)	2.5-120
Sanding belt speed (m/s)	Frequency converter
Sanding belt size (mm)	1020*1700
Speed of Feeding Belt (m/min)	6-38
Total Motor Power (kw)	7.5
Working Air Pressure (Mpa)	0.55
Consumption of compressed air(m3/min)	1.2
Collecting -dust air (m/s)	25-30
Overall Dimensions: (L x W x L)mm	1900*1600*2100
Weight(kg)	2200

wpc profile production line, Auxiliary machine
