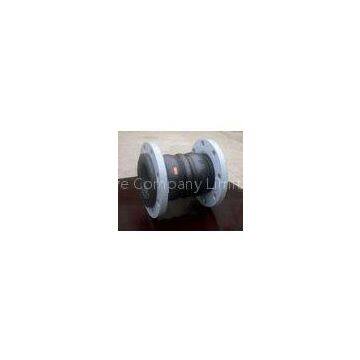

EPDM / NBR / Neoprene, PN 16, 48 Bar, 750mmHg Double Sphere Rubber Joint
- T/T L/C D/P D/A
- 7 days
You May Like
-
EN1092-2 PN10 / PN16 Flange Single Sphere Rubber Joint For Air, Water, Oil, Acid, Alkali
-
Moo Type Worm Gear Box For Waterworks Purpose
-
Ordinary Type Worm Gear Box ISO & CE Certificate
-
ISO & CE Certificate Stainless Steel Pneumatic Actuator Valve
-
ISO & CE Certificate Electric Actuator Valve for Waterworks Purpose
-
API 6D / API 600 / BS 1414, 2\" - 60\", 150 - 2500 LB, WCB / WCC / LCB / LCC Gate Valve
Product Details
| Brand Name | DIEFEI or OEM | Place of Origin | China | |
Product Description
EPDM / NBR / Neoprene, PN 16, 48 bar, 750mmHg Double Sphere Rubber Joint
·Working Pressure and Temperature
Working pressure PN 16.
Explosive pressure 48 bar.
Vacuum Rating 750mmHg.
Temperature from -10℃ to 120℃ for EPDM.
Temperature from -10℃ to 82℃ for NBR.
Temperature from -10℃ to 110℃ for Neoprene.
·Medium: Air, Water, Oil, Acid, Alkali etc.
·Flange Type:EN1092-2 PN10/PN16, other flange types are available.
·Materials Specification
|
Part Name |
Material |
|
Rubber |
EPDM/NBR/Neoprene |
|
Carcass |
Nylon Cord Fabric |
|
Reinforcing Wire |
Spring Steel Wire |
|
Flange |
Carbon Steel, Zinc Plated |
·Dimensions (mm)
|
Size |
L±5 |
Axial Compression |
Axial Elongation |
Lateral Movement |
Angular Movement |
|
32 |
175 |
20 |
10 |
20 |
30℃ |
|
40 |
175 |
20 |
10 |
20 |
30℃ |
|
50 |
175 |
20 |
10 |
20 |
30℃ |
|
65 |
175 |
20 |
10 |
20 |
30℃ |
|
80 |
175 |
20 |
10 |
20 |
30℃ |
|
100 |
225 |
30 |
15 |
25 |
30℃ |
|
125 |
225 |
30 |
15 |
25 |
30℃ |
|
150 |
225 |
30 |
15 |
25 |
30℃ |
|
200 |
325 |
40 |
20 |
30 |
30℃ |
|
250 |
325 |
40 |
20 |
30 |
30℃ |
|
300 |
325 |
40 |
20 |
30 |
30℃ |
|
350 |
350 |
40 |
20 |
30 |
30℃ |
|
400 |
350 |
40 |
20 |
30 |
30℃ |
|
450 |
350 |
