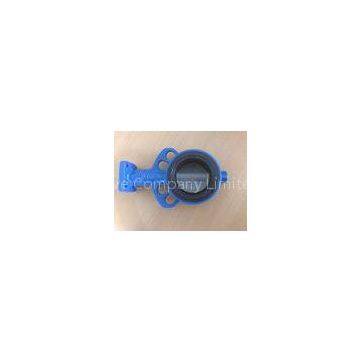

ISO & CE Certificate Cast Iron Body Handle / Gear Burrerfly Valve With Coated Nylon

FOB Price

Negotiable / Square Meter

1 Square Meter(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

DIEFEI or OEM

Place of Origin

China

ISO & CE Certificate Cast Iron Body Handle / Gear Burrerfly Valve With Coated Nylon

·Valve Standard:Comply with EN593/BS5155/MSS SP-67.

·Working Pressure and Temperature

Size 50 to 600,working pressure PN 16/Class 125.

Temperature from -10℃ to 120℃ for EPDM liner.

Temperature from -10℃ to 82℃ for NBR liner.

Temperature from -10℃ to 150℃ for Viton liner.

·Top Flange standard: Comply with ISO5211/1.

·Flange Type:EN1092-2 PN10/PN16/PN25,ANSI B16.1 Class125, ANSI B16.2 Class250,BS10 Table D/E,JIS 10K/16K.

·Operator:Handle or gear operator.

·Materials Specification

Part Name	Material	EN Spec.	ASTM Spec.
Body	Cast Iron	EN-JL1040	A126 Class B
Shaft	Stainless Steel	BS970 420S37	AISI 420
Disc	Stainless Steel	BS970 304S15	A351 CF8
Bronze	EN1982 CC491K	B62 C83600
DI Nichel Plated or FBE Coated	EN-JS1050	A536 65-45-12
Bushing	PTFE	Commercial	Commercial
Liner	EPDM/NBR/VITON	Commercial	Commercial
O-Ring	EPDM/NBR/VITON	Commercial	Commercial
