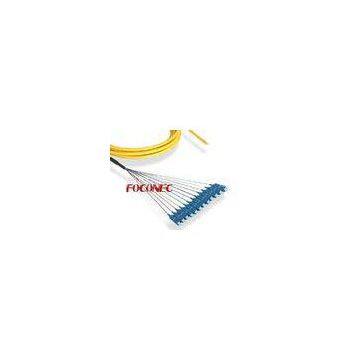

Multi Fiber Optic Patch Cord / Pigtail, SC Singlemode 12 Fiber Trunk Patch Cord / Pigtail

Quick Detail:

1.Singlemode fiber optic trunk pigtail with connectors terminated on one end

2. SC, LC, ST, FC connectors pre-terminated

3. 4-144 fibers

4. 0.9mm fan out directly

5. Minimum 300mm fan out length

SC Singlemode 12 Fiber Trunk Patch Cord / Pigtail, Multi Fiber Optic Patch Cord / Pigtail

Description:

Trunk cable is a type of multi-strand fiber cable constructed with Individual 900 μm fibers. The fibers are bundled into subunits of 6-(24F), 8-(48F) or 12-fibers each. Each subunit is identified and the individual fibers within the subunits are color-coded.

Fiber optic trunk pigtails are produced with connectors terminated on one end of trunk cables directly.  All fan-out could have same length or staggered as per project needs.

Pre-mounted Pulling Eye enable extremely easy handling during drawing or laying. All multisrtrand patch cables can be supplied on spools directly for easy drawing & installation.

Applications:

Used as interconnection or cross-connection in

1. Data center cabling

2. Backbone cabling

3. Fiber To The Home(FTTH)

4. Local Area Network(LAN)

5. Various kinds of testing and self-control system

Features:

1. Factory pre-terminated, eliminates the need for field terminations or splices, save on-site labor cost

2. 4, 6, 8, 12, 24, 48, 72, 96, 144 fiber trunk cable

3. Single-mode 9/125, Multimode 50/125 or 62.5/125, Multimode 10Gig fiber cable for option

4. Full Range of SC, LC, ST, FC, MTRJ, MU, DIN, D4 connectors available

5. PC (Physical Contact), UPC (Ultra Physical Contact) or APC (Angled Physical Contact) connector end-face polish available

6. 100% factory tested with complete test results

7. Customized length, staggering, connector type, fan-out style, and labeling

8. Pulling eye available for connecter protection, on-site easy and quick installation

Specifications:

Color Codes:
