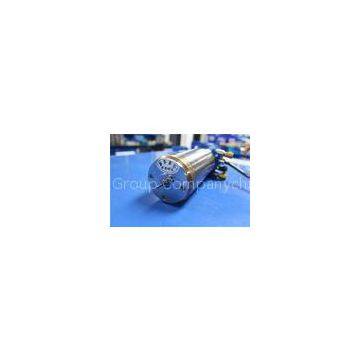

Compatible H516D/D1722 160,000RPM KL161 CNC High Speed Spindle PCB Drilling
Quick Detail:
|
MODEL |
REPLACE FOR |
DESCRIPTION |
KEY PRECISION |
Machine reference |
|
KL161D |
H516D D1722 |
SPEED RANGE:20,000 - 160,000 rpm Ø6.35mm-0.05mm precision drilling |
Static Runout:<2µm Dynamic Runout:<7µm Vibration:1.0MM/S |
KLINGINBERG PLURITEC HITACHI LENZ ANDERSON …. |
PRODUCT DESCRIPTION
MODEL:KL161
REPLACE FOR:H516D ; D1722
SPEED RANGE:20,000 - 160,000 rpm
BEARING TYPE:Air bearing
SPINDLE WEIGHT:4.1kg
COLLET SIZE:Ø1/8”
BODY SIZE: Ø 61.9
FREQUENCY (HZ): 334-2760
SENSOR OR WITHOUT SENSOR FOR CHOOSE
Max power:0.85KW
Coolant:Water oil
Fixed voltage:200V
Fixed current:4A
Static Runout:<2µm
Dynamic Runout:<7µm
Vibration:1.0MM/S
Competitive Advantage:
LOW STATIC
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR PRECISION DRILLING
APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: Ø6.35mm-0.05mm
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….
SPECIFICATION:
|
Air Pressure |
6.0 kgf/cm² |
|
Coolant water temperature |
20+2 |
|
Static runout |
<2µm |
|
Dynamic runout |
<7µm |
|
Collet torque(N.cm) |
>=150( 1/8”) |
|
Vibration |
1.0MM/S |
|
Collet size |
Ø1/8” |
|
Temperature sensor ohms KΩ |
R=0.1±5% AT 25℃ |
|
Open air pressure |
<5 kg/cm² |
|
Close air pressure |
>2 kg/cm² |
|
Coolant water flux |
>1.5(L/min) |
|
Coolant oil flux |
>3.0(L/min) |
|
Air consume flux |
74(L/min) |
|
Radial load |
6.0kgf |
|
Air Pressure |
6.0 kgf/cm² |
KL161 OUTLINE DRAWING
Why choose KLKJ?
With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.
All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character:
1. Air flow
2. Water flow
3. End float/lift off
4. Axial load (inner)
5. Axial load (outer)
6. Torque
7. Static RUNOUT
8. Dynamic RUNOUT
9. Motor check
10. Vibration
11. Material analysis & strictly quality test detection control
12. Stringent tolerance control
