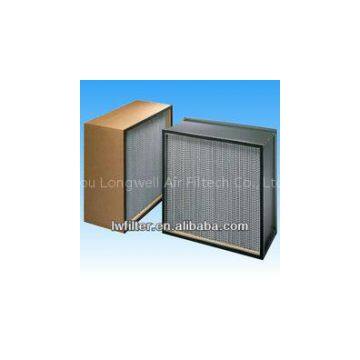

High termperature resistance Separator Pleated HEPA Filter
Advantages
Fine fiber ensures that filter maintains its efficiency throughout its life in the system
High dust holding capacity
Suitable for variable airflow
Robust design
Description: High efficiency box style air filter with wet-laid paper style media in an all-metal enclosing frame.
Application: Built-up filter banks,rooftops,split systems,free-standing units, package systems and air handlers.
Type: Rigid pleated filter
Frame: Galvanised steel.
Media: Microfine Glass media formed into full pack depth pleats separated by corrugated aluminum separators.
Gasket: Neoprene air inlet
Recommended final pressure drop: 450 Pa
Temperature: 350.C Max. in continuous service.
Fire rating: UL900.
SPECIFICATION:
Type |
Dimension (WxHxD)inch |
Air flow (m3/h) |
Media area/(m2) |
Dust holding/(g) |
Initial resistance (by 0.5m/s)/Pa |
Final resistance/Pa |
Efficiency/0.3µ |
HTP-10 |
19 x 19 x 4.7 |
390 |
4.4 |
230 |
≤200 |
400 |
|
HTP-11 |
24 x 24 x 4.7 |
620 |
7.1 |
370 |
≤200 |
400 |
|
HTP-12 |
36 x 24 x 4.7 |
930 |
10.6 |
560 |
≤200 |
400 |
|
HTP-13 |
48 x 24 x 4.7 |
1500 |
14.1 |
740 |
≤200 |
400 |
|
HTP-14 |
19 x 19 x 5.9 |
530 |
6.0 |
320 |
≤200 |
400 |
≥99.97% |
HTP-15 |
24 x 24 x 5.9 |
1000 |
9.7 |
510 |
≤200 |
400 |
|
HTP-16 |
36 x 24 x 5.9 |
1500 |
14.5 |
770 |
≤200 |
400 |
|
HTP-17 |
48 x 24 x 5.9 |
2000 |
19.3 |
1020 |
≤200 |
400 |
|
HTP-18 |
19 x 19 x 8.66 |
1000 |
9.8 |
600 |
≤200 |
400 |
|
HTP-19 |
24 x 24 x 8.66 |
1600 |
15.8 |
920 |
≤200 |
400 |
|
HTP-20 |
36 x 24 x 8.66 |
2300 |
23.7 |
1340 |
≤200 |
400 |
|
HTP-21 |
48 x 24 x 8.66 |
3000 |
31.6 |
1750 |
≤200 |
400 |
