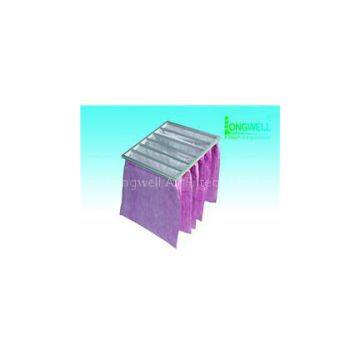

95%Pockets air filters / Colorfull synthetic Extended Pocket bag filter
We offers an extended surface bag filter in synthetic media. this types are constructed with a unique spanned stitching, which optimizes pocket configuration for minimum resistance and maximum dust holding capacity.
An optional Ultrasonic Weld synthetic pocket filter is available which provides a superior reduced sealing area for lower initial and overall resistance as will as eliminating the possibility of air by-pass.
Available in 45%, 65%, 85%, and 95% efficiencies
Available in standard depths of 12. 22, 29, 36 inches
Durable soft-edged j-channel frame
Various pocket configurations available based on airflow.
Class | Diamention W x H x D (mm) | Pockets | Filter area(m2) | Air flow(m/s) | Initial pressure drop (Pa) | Final pressure drop (Pa) |
30-35% | 287 x 592 x 550 | 3 | 1.86 | 1700 | 15 | 350 |
592 x 592 x 550 | 6 | 3.78 | 3400 | 20 | 350 | |
592 x 592 x 600 | 8 | 4.78 | 3600 | 30 | 350 | |
40-45% | 287 x 592 x 550 | 3 | 2.12 | 1700 | 20 | 400 |
592 x 592 x 550 | 6 | 4.4 | 3400 | 30 | 400 | |
592 x 592 x 600 | 8 | 4.8 | 3600 | 45 | 400 | |
60-65% | 287 x 592 x 550 | 3 | 2.12 | 1700 | 45 | 400 |
592 x 592 x 550 | 6 | 4.4 | 3400 | 80 | 400 | |
592 x 592 x 600 | 8 | 4.8 | 3600 | 100 | 400 | |
80-85% | 287 x 592 x 550 | 3 | 2.8 | 1700 | 100 | 400 |
592 x 592 x 550 | 6 | 5.78 | 3400 | 125 | 400 | |
592 x 592 x 600 | 8 | 6.12 | 3600 | 130 | 400 | |
90-95% | 287 x 592 x 550 | 3 | 2.8 | 1700 | 110 | 450 |
592 x 592 x 550 | 6 | 5.78 | 3400 | 130 | 450 | |
592 x 592 x 600 | 8 | 6.12 | 3600 | 135 | 450 |
