Specifications

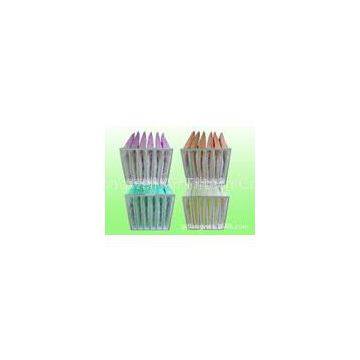

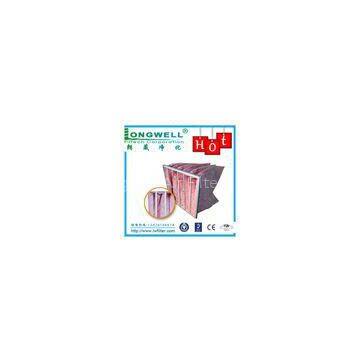

melt blown multi pocket air filter
100% spun bonded Polypropylene snythetic Media with integral ultrasonically
melt blown multi pocket air filter
Advantages
Multi-pocket bag filter
Comprehensive range of standard size
Robust Metal header frame
Unique pocket design
Large surface area
Controlled media spacing
Application: Air conditioning applications.
Type: Extended surface multi pocket bag filter.
Case: Alu. Or Galvanised steel.
Media: Synthetic Fibres
EN779:2002 filter class: G4.F5.F6.F7.F8
ASHRAE 52.2:2007 filter class: MERV 11. MERV 13. MERV 14.
Recommended final pressure drop: 450 Pa(suggested economical change point 250 Pa)
Temperature: 80.C Max. in continuous service.
Fire rating: UL900.
SPECIFICATION:
Class | Diamention W x H x D (mm) | Pockets | Filter area(m2) | Air flow(m/s) | Initial pressure drop (Pa) | Final pressure drop (Pa) |
30-35% | 287 x 592 x 550 | 3 | 1.86 | 1700 | 15 | 350 |
592 x 592 x 550 | 6 | 3.78 | 3400 | 20 | 350 | |
592 x 592 x 600 | 8 | 4.78 | 3600 | 30 | 350 | |
40-45% | 287 x 592 x 550 | 3 | 2.12 | 1700 | 20 | 400 |
592 x 592 x 550 | 6 | 4.4 | 3400 | 30 | 400 | |
592 x 592 x 600 | 8 | 4.8 | 3600 | 45 | 400 | |
60-65% | 287 x 592 x 550 | 3 | 2.12 | 1700 | 45 | 400 |
592 x 592 x 550 | 6 | 4.4 | 3400 | 80 | 400 | |
592 x 592 x 600 | 8 | 4.8 | 3600 | 100 | 400 | |
80-85% | 287 x 592 x 550 | 3 | 2.8 | 1700 | 100 | 400 |
592 x 592 x 550 | 6 | 5.78 | 3400 | 125 | 400 | |
592 x 592 x 600 | 8 | 6.12 | 3600 | 130 | 400 | |
90-95% | 287 x 592 x 550 | 3 | 2.8 | 1700 | 110 | 450 |
592 x 592 x 550 | 6 | 5.78 | 3400 | 130 | 450 | |
592 x 592 x 600 | 8 | 6.12 | 3600 | 135 |
