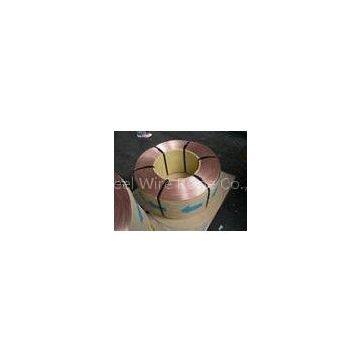

Copper Coat 400 Straightness Tire Bead Wire For Bike , Six Steel Belts Fixed
400 straightness bead wire 0.95mm Six steel belts fixed Perfect package Standard :AISI,ASTM,GB,JIS Steel grade: 70# ,72# ,80# ,82#Description:
Bead wire for tire rim is widely applied to the manufacturing of various tires rims for automobiles,motorcycles,planes as well as other vehicles.It’s the pivotal material of tire,which can strengthen the tire and is considered an important raw material for the tyre manufacturing business.
Applications
Reinforcement of all types of tyres such as trucks, buses, cars, motorcycles, bicycles etc. use in rubber
Our range of Tyre Bead Steel Wire includes:
Specifications:
|
Description |
BEAD WIRE |
Reference |
GB/T14450- 2008 |
Diameter |
Φ0.95mm |
|
Item |
Standard |
Result |
|||
|
Diameter(mm) |
0.94-0.97 |
0.94-0.96 |
|||
|
Surface Quality |
Coating Smooth and uniform |
conform |
|||
|
Straightness |
≤400 |
120-400 |
|||
|
Yield ratio |
92.0-95.0 |
93.4-94.9 |
|||
|
Tensile(Mpa) |
≥1850 |
1980-2130 |
|||
|
Elongation(%) |
≥5 |
8.5-9.2 |
|||
|
Torsion(360°/200d) |
≥30 |
31-42 |
|||
|
Bronze coated(g/kg) |
0.35-0.65 |
0.40-0.50 |
|||
|
Cu (%) |
97-99 |
98.6-99.2 |
|||
|
No. of Joints |
2 |
0 |
|||
|
Sn (%) |
0.5-3.0 |
0.8-1.40 |
|||
|
Adhesion |
≥932N/50mm |
1496N/50mm |
|||
|
Assay of chemical contents |
|||||
|
C |
Mn |
Si |
P |
S |
|
|
0.70-0.72 |
0.5-0.60 |
0.17-0.30 |
0.006-0.015 |
0.005-0.017 |
|
MAIN BUSINESS PARTNERS |
|
HARTEX RUBBER PVT LTD |
INDIA |
|
BALKRISHNA INDUSTRIES LIMITED. |
