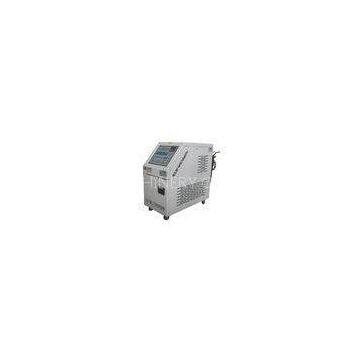

180 Degree Industrial Oil Mold Temperature Control Unit , Indirect Cooling

Delivery Time:20 – 35 work days
Certification:CE & ISO9001:2000

180 Degree Industrial Oil Mold Temperature Control Unit , Indirect Cooling

Quick Detail:

1. Temp. Control accuracy:PID±1℃

2. Temp. Control range: Inlet water temperature+25℃-180℃

3. Certification:CE & ISO

4. Controller:microcomputer

5. Heating capacity: 9KW

6. Maximum power consumption: 10KW

7. Alarm function:Excess temperature, open phase, oil starvation, overloading, reverse turn

Description:

Explosion-proof equipment(optional) Air blowing and return water function(optional) Thermometer for return water Automatic air-exhausting function after startup Switchover of heating power Instant cooling shut-down function(optional) RS485 communication function for automated management(optional) BY-PASS pressure release loop for hot water Customizable multi-point temperature control unit Customizable horsepower and heating power of water pump Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances Range of temperature control: +15℃-180℃ for incoming water Stainless steel integrated pipelines for less pipe resistance and rust Control mode: imported microcomputer or PLC(optional) Perfect safety protection, fault display, easy repair and maintenance even free of professionals

Specifications:

ITEM	UNIT	AOS-05A
Temp control range	℃	Inlet water temperature +25℃-180℃
Temp control accuracy	℃	PID±1℃
Power supply		AC3∮380V 50HZ +E(5M)
Heat transfer medium		Conduction oil
Cooling method		Indirect Cooling
Heating capacity	KW	6
Max. power consumption	KW	7
Horsepower of pump	hp	0.5
Working flow of pump	L/min	22
Working pressure of pump	Kg/cm2	1.3
Oil reserve	liter	8
Alarm function		excess temperature/Open phase/oil starvation/ overloading/reverse turn
Cooling water pipe	inch	1/2
Circulating water pipe	inch	3/8×2
Size(L×W×H)	mm	630×325×745

Competitive Advantage:

1. Strict quality control system

2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.

3. Our product is environmental and energy-saving

4. We have the production certification organic heat transfer material heater

5. High density heat insulation cotton and aluminum foil

6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

7. Imported microcomputer or PLC

8. Customization thick copper pipe 1.0-1.2

Applications:

Chemical Industry

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe m
