Certification:CE & ISO9001:2000

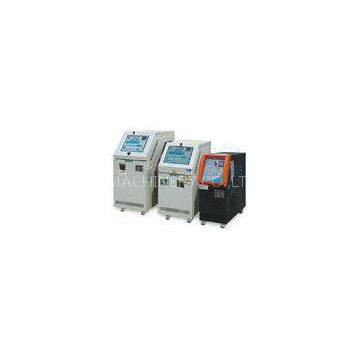

AODE 0.5HP Standard Oil Temperature Control Unit with ISO / CE Certificate
Quick Detail:
1. Temp. Control accuracy:PID±1℃
2. Temp. Control range: Inlet water temperature+25℃-180℃
3. Certification:CE & ISO
4. Controller:microcomputer
5. Heating capacity: 6KW
6. Maximum power consumption: 7KW
7. Alarm function:Excess temperature, open phase, oil starvation, overloading, reverse turn
Description:
Explosion-proof equipment(optional) Air blowing and return water function(optional) Thermometer for return water Automatic air-exhausting function after startup Switchover of heating power Instant cooling shut-down function(optional) RS485 communication function for automated management(optional) BY-PASS pressure release loop for hot water Customizable multi-point temperature control unit Customizable horsepower and heating power of water pump Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances Range of temperature control: +15℃-180℃ for incoming water Stainless steel integrated pipelines for less pipe resistance and rust Control mode: imported microcomputer or PLC(optional) Perfect safety protection, fault display, easy repair and maintenance even free of professionalsSpecifications:
|
ITEM |
UNIT |
AOS-05 |
|
Temp control range |
℃ |
Inlet water temperature +25℃-180℃ |
|
Temp control accuracy |
℃ |
PID±1℃ |
|
Power supply |
AC3∮380V 50HZ +E(5M) |
|
|
Heat transfer medium |
Conduction oil |
|
|
Cooling method |
Indirect Cooling |
|
|
Heating capacity |
KW |
6 |
|
Max. power consumption |
KW |
7 |
|
Horsepower of pump |
hp |
0.5 |
|
Working flow of pump |
L/min |
30 |
|
Working pressure of pump |
Kg/cm2 |
1.7 |
|
Oil reserve |
liter |
8 |
|
Alarm function |
excess temperature/Open phase/oil starvation/ overloading/reverse turn |
|
|
Cooling water pipe |
inch |
1/2 |
|
Circulating water pipe |
inch |
3/8×2 |
|
Size(L×W×H) |
mm |
630×325×745 |
Competitive Advantage:
1. Strict quality control system
2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.
3. Our product is environmental and energy-saving
4. We have the production certification organic heat transfer material heater
5. High density heat insulation cotton and aluminum foil
6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
7. Imported microcomputer or PLC
8. Customization thick copper pipe 1.0-1.2
Applications:
Chemical Industry
Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic Injection molding, light guide plates, connectors, Chemical engineering, Shoe mat
