Certification:CE & ISO9001:2000

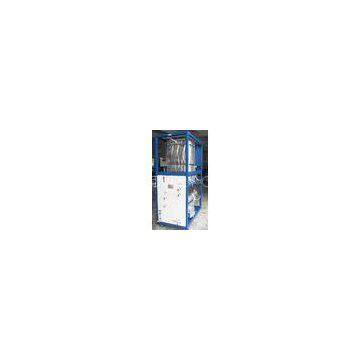

12Kw Heating Capacity Designs Oil Type Stainless Steel Plastic Mould Temperature Controllers 40C-300C Temp Control Range
Feature:
1.Computer touches type control, operate easily ,
2.Imports the two group P.I.D temperature of micro computer control table .Touch type store up ,calculate automatically , save power more than 35%,
3. Protect safely and fault instruction system is perfected ,
4.Import high-grade assembly, tenure of use is long,
5.The warm speed of ascend and descend is rapid, temperature is stabilized accurately
6.Unique two power heating designs and suitable different temperatures control place to use, theeffect of energy saving is obvious
7.One body of stainless steel is into type , it is little that pipe harms , it is even to heat up
8. Start automatic exhaust function
9.Mould backwater temperature detection table.
| Item | Unit | Model | ||||
| Ordinary | High Temperature And High Pressure | |||||
| RO-03OS | RO-06OS | RO-09OS | RO-09OH | RO-12OH | ||
| Heating Medium | Oil | |||||
| Tem Scope | ℃ | 45-180℃ | 45-360℃ | |||
| Heating Capacity | KW | 3 | 6 | 9 | 9 | 12 |
| Pump | Power | KW | 0.37 | 0.75 | ||
| Max Pressure | Kg/c㎡ | 2.5 | 3.5 | |||
| Max rate of flow | L/min | 50 | 90 | |||
| Cooling Way | Indirect Cooling | |||||
| Match Pipe Diameter |
Oil Pipe | Inch | 1/2×2 | 3/4×2 | ||
| Water Pipe | Inch | 1/2×2 | ||||
| Heating Medium Volume | L | 10 | 16 | |||
| Dimension(L*W*H) | mm | 635×310×585 | 788*380*685 | |||
| Weight | Kg | 46 | 50 | 53 | 64 | 68 |
| Power Supply | Volt | 3PHASE-380V-50HZ |
To give you our best offer one time,please indicate:
1.What is the heating capacity you need?
2.Water type or oil type?
3.What is the temp control range?
Welcome to contact vivian@rozl.com!
