Product Details
| Brand Name | FANGZHENG | Place of Origin | China | |
| Model Number | FANGZHENG |
Product Description
Certification:CE,ISO9001:2001,BV

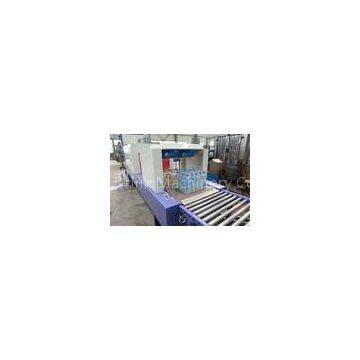

High Speed Shrink Packaging Equipment , PE Film Beverage Wrapping Machinery
Applications:
Shrink film wrapping Soft drink, liquor (beer, rice wine and alcohol, etc.) Liquid food (edible oil, vinegar and soy sauce, etc.) Daily commodities (detergent, shampoo and so on)Main performance features
Compact & artistic shape. The frame is novel, unique. Electronic induction feeding film, action is balanced and quickly replacing film. Isothermal sealing cutter. The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times. Transport system with speed regulation by frequency variation, the transmission action is precise and synchro. The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better. Disposition: SIEMENS, OMRON, UNIQUC, etc. advanced control component in the world, Well-equipped.MB series machine has been designed for no tray, no cardboard case, packing with low cost in the operations, it is widely used in food, beverage, chemical and office industries
Specifications:
|
Model |
MB-10 |
|
Packing form |
bottles and cans |
|
Packing speed |
10 packs/min |
|
Applicable container shape |
circular container, square container |
|
Total power charge |
19kw three-phase-five-line 380v/50Hz |
|
Machine size |
L×W×H=6500×3200×2100mm (Include 1meter no-power rear roller frame) |
|
Operating air pressure |
0.6~0.8Mpa |
|
Air consumption |
0.4stere/min |
|
Conveyor belt extreme breadth |
304mm |
|
Conveyor height |
according to client line (adjustable scope 150mm) |
Main parts
|
No. |
Name |
Brand |
Region |
Remarks |
|
1 |
Pneumatic Cylinder |
Chanto |
Taiwan |
|
|
2 |
Pneumatic Components |
Airtac |
Taiwan |
|
|
3 |
PLC |
Omron |
Japan |
|
|
4 |
Button |
Tayee |
China |
|
|
5 |
Inverter |
Schneider |
France |
|
|
6 |
Relay |
Schneider |
France |
|
|
7 |
Contactor |
Schneider |
France |
|
|
8 |
Solid Relay |
Crydom |
France |
|
|
9 |
Teflon Belt |
Kaiyao |
China |
Imported material |
