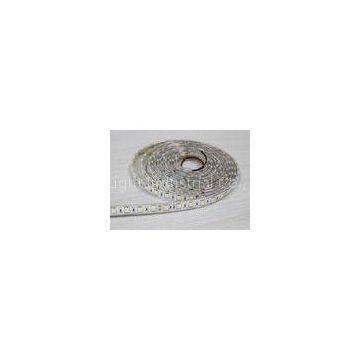

5050 SMD Flexible LED Strip Light, High Lumen LED Strips Lighting CE RoHS Approved

5050 SMD Flexible LED Strip Light, High Lumen LED Strips Lighting CE RoHS Approved

High lumen LED strip lighting, all color available, 5050 SMD LED, 600leds/roll

Description:

Specifications:

US-F5050-60I Series of Silicone tube encased and Epoxy glue injected waterproof IP68

Dimension: 5000*12*4mm
LED Chip:  5050 SMD TOP LED
Emitting color: Red, Yellow, Blue, Green, warm white, cool white, RGB colors
LED Quantity: 60pcs/meter, total 300pcs
Material: FPC + Silicone tube encased and Epoxy glue injected
FPC color: Yellow, White, Black
Beam Angle: >120°
Working Voltage: DC12V / DC24V
Rated Power: 14.4W/m

Life Span: ≥50000 hrs,
Working Temperature: -25℃~55℃
Working Humidity: 10%~95%
Protection Degree: IP68
Packaging: 5m/roll

5050 SMD LED Strip dimension (unit: mm)

Strip Connection:

To cut and seal at one end, please follow the steps: A1 A2 A3 B1 B2
To cut and install waterproof connector at one end, please follow the steps: A1 A2 A3 C1 C2 C3 C4 C5
A1: Cut the light strip at the mark ”scissors” or by every 3 LED\'s.
A2: Screw to open the glue cap.
A3: Use the thrust (another side of glue cap) to puncture the surface.
B1: Inject the silicon gel into the end cap without holes.
B2: Push the strip into the cap and let gel dry for 1 hour.
C1: Put the connector wire through the end cap holes.
C2: Solder the wire onto the PCB.
C3: After solder the two wires, push the strip into the end cap with wires carefully.
C4: Inject the silicon glue at the end of strip and cap.
C5: Make sure end cap and strip are connected well and let gel dry for 1 hour.

Accessories:

Connectors are necessary if you want to connect the cut sections together or connect a section to power. (Connector of strip to strip and connector of strip to power are both available)

Installation:

Waterproof flexible strips have the ability to produce continuous light connection for long distances while

maintaining uniformity. They can be interconnected using connectors or cut in marked areas for shorter installation.

Package:

250meters/50rolls packed in one carton
Carton size: 52 x 26 x 28 cm

Applications:
1) Architectural decorative lighting
2) Archway, canopy & bridge edge lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Cove lighting
