Product Details
| Brand Name: | hl | Place of Origin: | China | Model Number: | US-PL-G24-S5W |
Product Description
Certification:ISO

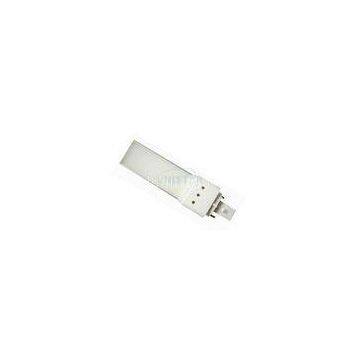

High Luminous Samsung 5630 SMD LED G24 Lamp Light, 5W 100lm/W AC85 - 265V
China LED G24 lamp, 5W 100lm/W AC85-265V, 3 years warranty
Description:
Samsung 5630 SMD LED AC100~240V input options 5W power consumption Warm white Pure white Cool white Luminous Efficiency 80-110Lm/W Color Rendering Property(CRI): >80 G24,G23,E14,E27 base could be rotated 300º 120º beam angle Replace traditional PLC lamp directly, no need to take off the ballast. Up to 70% energy savings 3 Year Warranty CE RoHS TUV UL compliantSpecifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Tech Date |
||
|
Model |
US-PL-G24-S5W |
|
|
LED Qty |
10pcs |
|
|
LED Type |
Samsung 5630 SMD LED |
|
|
LED Power |
5.0W |
|
|
LED Color |
Warm white, Pure white, Cool white |
|
|
Input Voltage |
AC100~240V; 110V/220V |
|
|
Frequency Range |
50Hz – 60Hz |
|
|
Power Factor |
>95 |
|
|
Power Efficiency |
>88% |
|
|
Luminous Efficiency |
80~110LM/W |
|
|
Dimension |
29 x 130mm |
|
|
Color Temperature |
WW |
2700-3500K |
|
PW |
4000-5500K |
|
|
CW |
6000-7000K |
|
|
CRI |
WW |
Ra>82 |
|
PW / CW |
Ra>80 |
|
|
Lumens Output |
WW |
380lm |
|
PW |
400lm |
|
|
CW |
420lm |
|
|
Beam Angle |
120° |
|
|
Base Type |
G24 / G23 / E14 / E27 Rotation |
|
|
Net Weight |
85g |
|
|
Working Temperature |
-40℃ ～ +55℃ |
|
|
Storage Temperature |
-25℃ ～ +65℃(25℃best) |
Curve of light distribution & Lux distance(Ta=25℃±3℃)
Comparison of color temperature:
Diagram of degradation for Luminous:
Comparison of Lifetime:
|
Traditional PLC lamp |
6000,hours lifetime |
Increase the |
|
|
G24 LED PLC Lamp |
50000,hours lifetime |
long time with |
G24 LED PLC Lamp dimension (unit: mm)
Package:
41*30*16cm (80pcs/box) 7.0kgs
Applications:
Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls,
supermarkets, kitchen, display, backlight, home indoor lighting and so on
