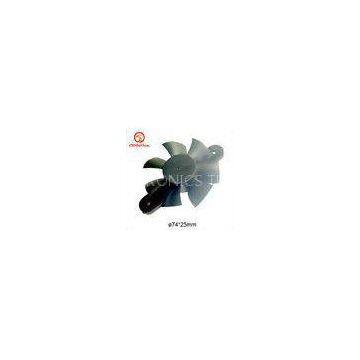

DC Brushless 22V Cooker Cooling Fan , Low Noise 74*25mm Cooler Fan


DC Brushless 22V Cooker Cooling Fan , Low Noise 74*25mm Cooler Fan


Quick Details




Description:

1.Product Name:
Electronic Stove Fan,DC fan,DC cooling fan,DC brushless fan,DC axial fan,computer fan,cpu fan,case fan,DC blower fan.
2. Life Expectancy:
Dual Ball Bearing: 70000 hours
Single Ball Bearing: 40000 hours
Long life Bearing: 35000 hours
Sleeve Bearing: 25000 hours

Unless otherwise specified,the reference environmental temperature and relative humidity are taken to be 20℃ and 65%.
If there is no provision in the judgment,the environmental temperature and relative humidity range are taken to be 15℃～35℃ and 25%～75%.
4. Operating temperature: -10°C～+70°C/65%(RH)
5. Storage temperature: -40°C～+70°C/65%(RH)
6. Normal temperature rise:
Temp;rise less than 25 °C at external surface.Temp;rise less than 55 °C at coiler surface.
7.Material:
Impeller & Frame: PBT Plastic(UL94V-0)
8.Lead Wire:
UL1061 AWG26# or Equivalent
Red wire: positive(+)
Black wire:Negative(-)

Insulation resistance is more than 10MΩ when voltage between housing and both lead wires is 500VDC .

11.Competitive Advantage:
11-1. We enjoy 10 years experience in manufacturing cooling fan
11-2. We have a comprehensive OEM service
11-3. We fully approved CE,SGS,UL,cUL,TUV certifications
11-4. We have advanced testing instrument and production equipment
11-5. We enjoy convenient access to major transportation networks.
11-6. We specialize in all kinds of Cooling Fans,such as AC/DC fans, CPU coolers,notebook coolers, VGA coolers, Hdd cooler and some accessories : Fan Gard ,Fan Filter and Thermal Grease


Applications:

Suitable for Computer, Household Appliances , Cooker , Electronic Stove Fan, Projectors, toys, Copiers and other equipment heat dissipation
