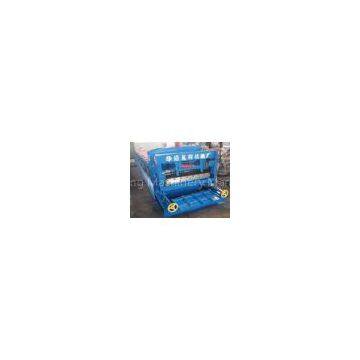

Glazed Sheet Metal Wall Panel Roll Forming Machine / Roof Tile Making Machine

Glazed Sheet Metal Wall Panel Roll Forming Machine / Roof Tile Making Machine

HT 840 glazed roof tile roll forming machine
1. Chain : 25.4mm
2. Step of forming roller:11 steps
3. controlled by PLC


HT 840 glazed roof tile roll forming machine

1. Material of frame : (high grade) 400mm

2. Diameter of shaft(solid shaft): 70mm

3. Chain : 25.4mm (high grade)

4. Line speed : about 10 m/min

5. Step of forming roller:11 steps

6. Material of shaft:(high grade) 45# Steel

7. Motor power : 3KW (main motor)

8. Oil pump of hydraulic station : gear oil pump (high grade)

9. Razor blades material : Cr12, quenching 58-62 °.

10. Thickness of formed steel : 0.3mm-0.8mm

11. Feeding width : 1000mm

12. Accuracy of cutting : 2mm

13. Hydraulic cutting: cutting controlled by PLC

14. Appearance size of main forming machine : 6.0m (length)*1.3m (width) *1.3m (height)

Delivery:

The machines will be ready within 45 days from receipt of

down payment as well as approval of sales contract, technical scheme

and profile drawing. The shipment will be made within 10 days

after the seller receives the balance by T/T.

Terms of payment:

30% of the contract amount as down payment after signed the

contract; the balance is to be paid by T/T before shipment. Installation

 charge is to be paid before installation by T/T.

Cost of installation:

The buyer should pay the installation charges (USD 50 one man one

day). to the seller’s appointed account by T/T before

the seller’s technicians go to the buyer’s factory. The buyer pays

the seller’s technicians travel cost outside China, including

 round air tickets fee, accommodation and food, provide transportation

from living hotel to the work place, necessary communication,

 and insurance, etc.

Product warranty:

12 month, and we will provide the technical support for the whole

life of the equipment.
