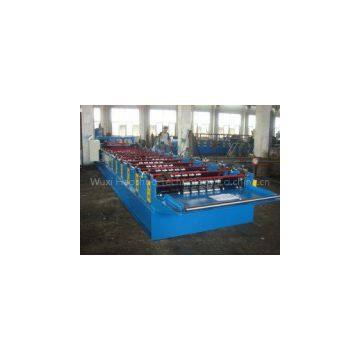

12 - 16m/min Forming Speed Roof Panel Sheet Roll Forming Machine

12 - 16m/min Forming Speed Roof Panel Sheet Roll Forming Machine thumbnail-1
12 - 16m/min Forming Speed Roof Panel Sheet Roll Forming Machine photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HS
Place of Origin:
China
Model Number:
custom made
Contact Supplier Request Quote Chat Now
Wuxi Haoshuo Technology Co.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HS
Place of Origin China
Model Number custom made
Delivery Time:about 40 days after receipt down payment
Certification:ISO9001, CE

I.      Work Flow

         Un-coiling àfeeding àroll forming àhydraulic cutting àproduct table

II.   Main Components

1.       Passive decoiler

2.       Main forming machine

3.       Cutting device

4.       Hydraulic station

5.       Product table

6.       PLC control cabinet

III.Main Technical Data

1.     Decoiler: manual decoiler, capacity 5 tons, inner diameter 460-520mm

2.     Main forming machine:

1)    Suitable material: pre-painted or galvanized coil

Coil thickness: 0.3‐0.8mm

2)    Forming speed: 12-16m/min

3)    Forming stands: 18 stands

4)    Size of roll shaft: 70mm

5)    Roll shaft material: high grade 45# steel(heat treatment)

6)    Roller material: high grade 45# steel (heat treatment), coated with hard chrome

7)    Main motor power: 5.5KW

8)    Way of drive: 12A chain

9)    Chain material: high grade 45# steel, HRC45-50°

10)   Base frame: high grade channel steel, wallboard structure, stresses relieved treatment, sidewall panel 18mm

3.     Hydraulic cutting device:

1)    Hydraulic station power: 3KW

2)    Cutting mould material: Cr12(heat treatment), HRC58-62°

3)    Cut to length tolerance: ±1.5mm

4.     Control cabinet:

1)    Standard Power Source: 380V±10%/50Hz

2)    Outline: 700mm×300mm×1000mm(L×W×H)

3)    Panasonic PLC computer control system, touch screen operation

5.     Machine outline(L×W×H): about 12M×1.5M×1.4M

6.     Total weight: about 8 tons
