Application:

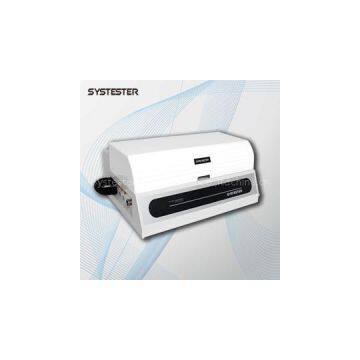

OTR-1901 is based on the coulometric sensor method and applicable tothe determination of
oxygen transmission rate and oxygen permeability coefficient of plasticfilms, sheet, paper, aluminum foils, rubber, tyre, paper-plastic compositefilms, battery plastic shell, solar back-sheets and many others materials, aswell as Tetra Pak package box, peanut oils package, vacuum bags, metalthree-piece cans, soft tubes for toothpaste, jelly, yogurt cups etc… package.
Main Feature:
·Equal pressure method
·Embedded system ensures remotemaintenance and upgrade

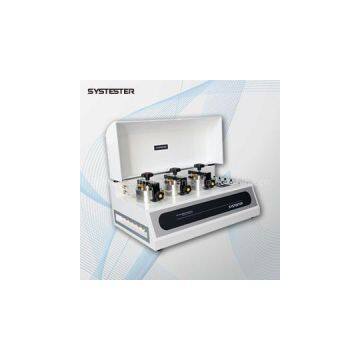

·3diffusion cells are integrated in one instrument to separately measure 3distinct or equivalent specimens with independent test results at one operation
·Equipped with 3 water bath temperature control independently for easy toreal-time control temperature during test process
·One-button test, testautomatically in whole process
·High performance importedtemperature and humidity sensor ensures the accuracy and repeatability ofresults
·High accuracypipeline system is suitable for high, medium and low barrier materials
·High accuracy operating and control device whichimproves services life
·Wide range automatic humidity control system adding humidity to twosides of the specimen
·Support package test (optional)
·Over pressure, over temperature, overload and other automatic multipleprotection
·Standard, proportion andintelligent test modes are available and suitable for various standard,non-standard, rapid test
·Professional computer workstation software with powerful backgroundanalysis function
·Traceable reference data, system log
·5 degrees user management, meets GAMP5
·Temperature curve, humidity curve and pressure curve displayindependently
·Reference films for accurate vacuumcalibration
·Independent patent technology, with full intellectual property rights
·Support Lystem TM Lab Data Sharing System for uniformmanagement of test results and test records (optional)
Technical Indexes:
·Test Range:
Films: 0.01~6500 cm3/m2·d(Standard)
0.05~65000 cm3/m2·d(Optional)
Package: 0.0001~65 cm3/pkg·d(Standard)
·Test Resolution:
Films: 0.001 cm3/m2·d
Package: 0.00001 cm3/m2·d
·Temperature Range: 5~95 degrees Celsius
·Temperature Resolution: +0.1 degrees Celsius
·Humidity Range: 0%RH, 35%RH~90%RH, 100%RH
·Humidity Resolution: +1%RH
·Specimen Amount: 3 independently
·Test Area: 50 cm2
·SpecimenDimension:
Films: ≥ 150mm * 94mmor circular specimen
Package:≤ Ф 120mm *400mm (H)
·Specimen Thickness:
Films: ≤ 5mm
·Test Gas: oxygen, gas (gas source customized)
·Carrier Gas: 99.999% Nitrogen (gas sourcecustomized)
·Carrier Flow: 0~200 ml/min
·Gas Interface: 1/8 inch
·Power Supply: AC 220V 50Hz
·Dimension: 730mm (L)*590mm (B)*350mm (H)
·Net weight: 56kg
Standard:
GB/T 19789, ASTM D3985, ASTM F2622, ASTM F1307,ASTM F1927, ISO 15105-2, JIS K7126-B, YBB 00082003
Configuration:
Delivery: Main unit, Professional software, Dataextension card, Communication cable, Temperature controller, Tank regulator
Optional: Accessories for package test,Temperature control device, Reference films, Vacuum sealing grease, Specimencutter, DSM lab data management system
Note: Specifications are subject to change without prior notice.
