ISO 15106-3 High-barrier Material Water Vapor Permeability Tester

ISO 15106-3 High-barrier Material Water Vapor Permeability Tester thumbnail-1
ISO 15106-3 High-barrier Material Water Vapor Permeability Tester thumbnail-2
ISO 15106-3 High-barrier Material Water Vapor Permeability Tester thumbnail-3
ISO 15106-3 High-barrier Material Water Vapor Permeability Tester photo-1

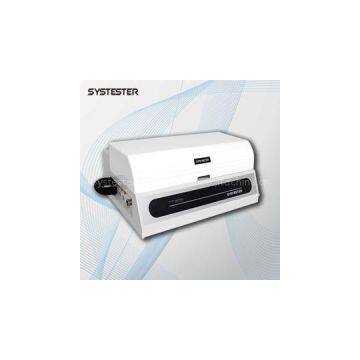

ISO 15106-3 High-barrier Material Water Vapor Permeability Tester photo-2

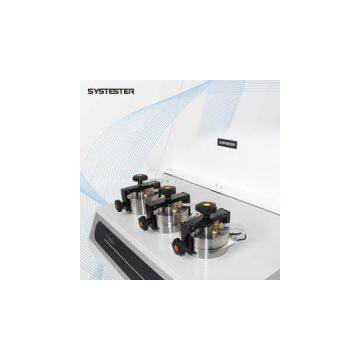

ISO 15106-3 High-barrier Material Water Vapor Permeability Tester photo-3
US$ 1 - 1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SYSTESTER
Place of Origin:
China
Model Number:
WVTR-9002
Contact Supplier Request Quote Chat Now
Systester Instruments Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SYSTESTER
Place of Origin China
Model Number WVTR-9002

Type:WVTR-9001

Brand: SYSTESTER Instruments co.,ltd

Standard test methods forwater vapor and gas transmission rate or permeability through polymericmembranes   is based on the electrolytic or infrared detection sensor method andavailable for the water vapor permeability test of flexible films, sheeting andpackages. It can test 3 specimens in one operation with independent results.



Features

1: Electrolytic sensor method

2: Patent technology

3: Film and package test

4: 3 specimens testsimultaneously and independently

5:One-button test, testautomatically in whole process

6: Multiple test modes optional

7: Data curves display

8: Computer control

9: Digital flow adjustment

10: 3 Chambers temperaturesensor

11: Environment temperature and humidity sensor inside

12: Chambers water bath technology

13: Unit based on embedded system,24bit Δ-Σ AD

14: Pressure, ppm water sensor and temperature overload protection

15: Traceable reference film calibration

16: Supports DSM system (DSM, lab data management system)



Technical indexes

Test range：

          Film:  0.001-52 g/m2·24h (Standard)

                     0.01-1100 g/m2·24h (Optional)

              Resolution: 0.001g/m2·24h

              Package:

                           0.0001~0.5 g/pkg·d

                 Resolution:

                           0.00001 g/pkg·d

Specimen amount:   3specimens, independent

Temperature range:  5C – 95C

Temperature accuracy: ±0.1C

Humidity range: 0%RH,35%RH-90%RH,100%RH, standard condition 90%RH

Humidity accuracy: ±1%RH

Test area: 50 cm2

Specimen size:

             Film: size: 150mm X 94mm

                         Thickness: less 5mm

             Package:

                     Max size:D120mm X 400mm

Carrier gas:  99.999% Nitrogen

Carrier flow:  0~200 ml/min

Gas interface:  1/8 inch

Power supply:  AC 220V 50Hz

Dimension:  730mm X 590 mm X 350mm

Net weight:  70kg

Standards

ISO 15106-3, GB/T 21529, DIN 53122-2, YBB 00092003

Configuration

Delivery:  Main unit, W-TRANS software, Temperaturecontroller, tank regulator, PCIE card, communication cable, sample cutter,vacuum grease.

Optional:  Package fixtures, reference film, vacuumgrease, sample cutter, DSM system.
