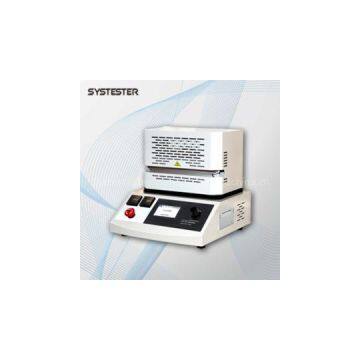

HSL Heat Seal Tester of Flex Packaging SYSTESTER China

Applies to best parameters determination ofheat seal ability of various kinds of film. Heat seal ability of film depends on temperature, pressure and heat timeand the HSL-6001 heat seal testerSYSTESTER is widely used in food and pharmaceuticalpackaging industries.

HSL-6001 heat seal tester SYSTESTER Features

1: Patent technology ,Embedded system control, Touch screenoperation

2: TFT LCD display, UI flattening design, easy to operate

3: Dual heat jaws, temperature controlled independently

4: Pressure easy to adjust, and wide range.

5: Emergency stop button,safety design to prevent burns

6: Over temperature protection, over pressure protection

7 Micro-printer built in

8: DB9 RS232 communication port.

9: Ethernet communication available. (optional)

10: Bar code scanner available.(optional)

11: LMIS system is optional(Laboratory Management InformationSystem), easy to share test data.

HSL-6001 heat seal tester SYSTESTER  Technical indexes

Heat temperature: 8 ~ 300℃

Accuracy:  ±0.2℃

Dell time: 0.1~ 999.9s

Pressure: 0.05 MPa~1.1MPa

Heat surface: 265mm × 12 mm（optional）

Heat mode: independently

Gas source pressure: 0.05MPa ~ 1.1MPa (provide for yourself)

Gas source interface: Ф6mm

Outer dimension:410 mm (L)×396 mm (B)×416mm (H)

Power supply:  AC 220V 50Hz

Net weight: 41kg
