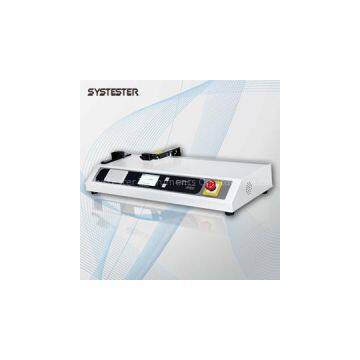

Best Pressure Sensitive Tape T-style Micro Peeling Strength Tester

Best pressure sensitive tape T-style micro peeling strength tester Application

For the professional test of peeling force and bond strength Of various kinds of flexible laminated plastics or equivalents.

Best pressure sensitive tape T-style micro peeling strength tester Features

1. Professional in peeling force and bond strength test.

2. Designed based on various standards.

3. Our own patent technology.

4. Touch screen operation.

5. Real color TFT LCD display.

6. High accuracy load cell built-in.

7. Test speed can be preset freely through touch screen.

8. Micro-printer built-in.

10. Different load cell range can be selectable.

11. Various professional grips can be optional.

12. Overload warning.

13. Low power consumption.

14. RS232 communication port.

15. Professional computer software support.(optional)

Best pressure sensitive tape T-style micro peeling strength tester Technical Indexes

MPT-1102 Micro Peeling Tester

Load cell range: 5N, 10N, 30, 50N, 200N Accuracy: 0.3%FSMAX

Test speed: 1mm/min～1000mm/min

Peeling distance: 400mm

Sample width: 10mm, 15mm, 20mm, 25.4mm, 50mm (optional)

Power supply: 80 to 260 VAC @ 40 to 66Hz

Consumption: 12W

Dimension: 650mm (L) X 340mm (B) X 210mm (H)

Net weight: 20kg

Best pressure sensitive tape T-style micro peeling strength tester Standards

ASTM D3330, GB/T 25256, GB 8808, GB2792

Configuration

Delivery: unit, peeling grips

Optional: Professional computer software, calibration accessories, peeling fixtures, test plates.

Note: Specifications are subject to change without prior notice.
