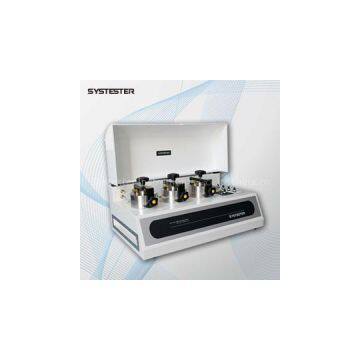

Automatic (SYSTESTER)water Vapor Permeability Tester of Plastic Films

Automatic (SYSTESTER)water Vapor Permeability Tester of Plastic Films thumbnail-1
Automatic (SYSTESTER)water Vapor Permeability Tester of Plastic Films thumbnail-2
Automatic (SYSTESTER)water Vapor Permeability Tester of Plastic Films photo-1
Automatic (SYSTESTER)water Vapor Permeability Tester of Plastic Films photo-2
US$ 1 - 1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SYSTESTER
Place of Origin:
China
Model Number:
WVTR-9001
Contact Supplier Request Quote Chat Now
Systester Instruments Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SYSTESTER
Place of Origin China
Model Number WVTR-9001

Type:WVTR-9001

Brand: SYSTESTER Instruments co.,ltd

Automatic (SYSTESTER)watervapor permeability tester of plastic films is based on the electrolytic or infrared detection sensor method andavailable for the water vapor permeability test of flexible films, sheeting andpackages. It can test 3 specimens in one operation with independent results.



Features

1: Electrolytic sensor method

2: Patent technology

3: Film and package test

4: 3 specimens testsimultaneously and independently

5:One-button test, testautomatically in whole process

6: Multiple test modes optional

7: Data curves display

8: Computer control

9: Digital flow adjustment

10: 3 Chambers temperaturesensor

11: Environment temperature and humidity sensor inside

12: Chambers water bath technology

13: Unit based on embedded system,24bit Δ-Σ AD

14: Pressure, ppm water sensor and temperature overload protection

15: Traceable reference film calibration



Technical indexes

Specimen amount:   3specimens, independent

Temperature range:  5C – 95C

Temperature accuracy: ±0.1C

Humidity range: 0%RH,35%RH-90%RH,100%RH, standard condition 90%RH

Humidity accuracy: ±1%RH

Test area: 50 cm2

Specimen size:

             Film: size: 150mm X 94mm

                         Thickness: less 5mm

             Package:

                     Max size: D120mm X 400mm

Carrier gas:  99.999% Nitrogen

Carrier flow:  0~200 ml/min

Gas interface:  1/8 inch

Power supply:  AC 220V 50Hz

Dimension:  730mm X 590 mm X 350mm

Net weight:  70kg

Standards

ISO 15106-3, GB/T 21529, DIN 53122-2, YBB 00092003
