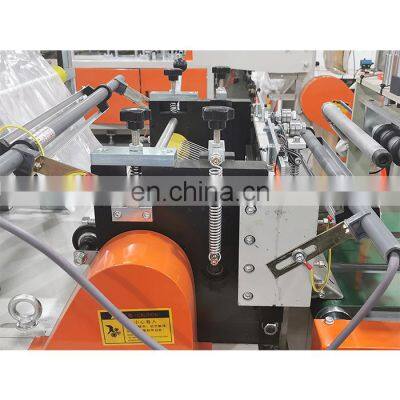

Needle-punched pe disposable nail care/art gloves making machine

Glove mould size

36.5×39cm

Glove Making Speed

50-220Pcs/Min/Layer, total 440pcs/min

Film roll unwinding device

with mechanical shaft

Tension Controller: 2.5KG magnetic barker with manual controller

Unwinding motor

Unwinding motor: 0.55KW, with 1.1KW inverter

Controlling: main computer controlling.

Main driver

Structure: crank rocker push-pull structure

Drive: A.C motor with inverter controlled, 1.5 KW, 6 grade

Controlling: main computer controlling.

Front Traction motor

Structure: Friction type,

 Drive: Step motor

Transmission: M-type synchronous belt wheel drive,

Control form: step motor driver

Detection method: photocell combined with proximity switch

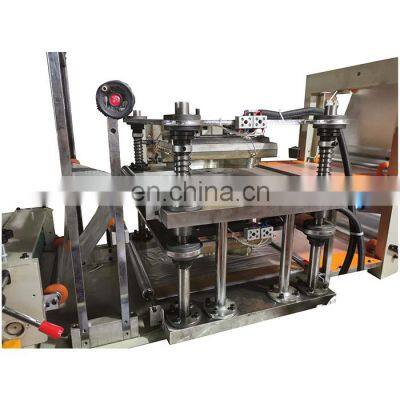

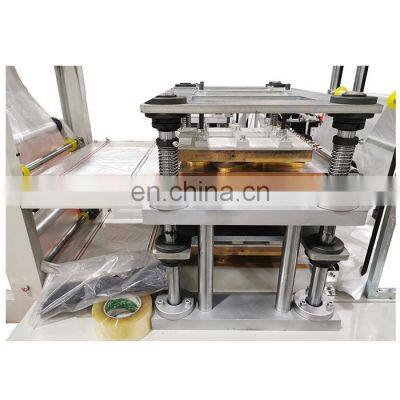

Glove mould

Raw material: Cast copper

Heating: heating pipe, with temperature controller, control temperature automatically.

Cutting knife

Width: 380mm

Material: White Steel Alloy

Drive mode: main motor connecting rod drive

Electric Cabinet

Main Computer: Touch screen microcomputer-

Contactor, swift

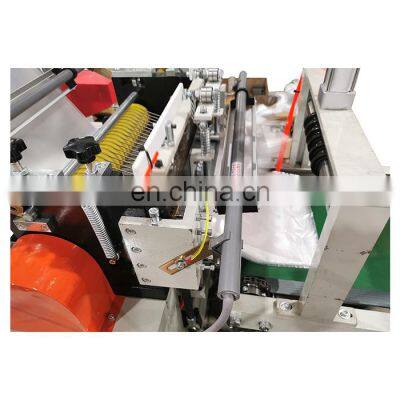

Automatic waste edge tearing device

Waste edge tear model: tearing by batches, and delivery out by batches

Controlling: PLC and pneumatic cylinder

Other

Tracking photocell: 1 set

Static Eliminator: dry type, elimination bar * 2, elimination device * 1

Conveyor belt: 1 set

Weight

1300KG

Over Size (L×W×H)

2600×1000×1400mm
