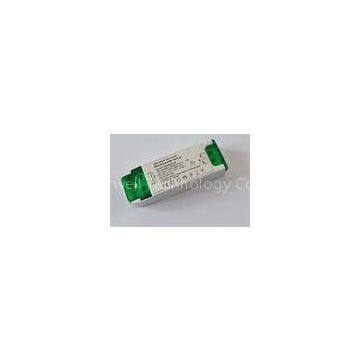

350Ma 12V Constant Current Triac Dimmable Led Driver 28W 170-250Vac

350Ma 12V Constant Current Triac Dimmable Led Driver 28W 170-250Vac

Short Features :

> Type : Dimming Led Driver / Triac Dimmable Led Driver

> Application : Led panel , led down light , led street light , led tube , etc......

> Dimming Type : Trailing Edge & Leading Edge

> Model : PE299B28120

> input voltage range : 90-140VAC / 170-250Vac

> output : 12~24V 0~1200mA 28W

> Output type : constant current

> Effiency : 90% Minimum

> PF : > 0.95

> Ripple and Noise : 100mV maximum

> Net Weight : 200g

> Dimensiont : 129(H)*44(W)*28(H)mm

> Certificate : SAA , C-tick , CE , ROHS certificates.

> Safety protection : over load, over voltage, short ciruict, open load protection.

Specifications

MODEL LIST :

Applications:

For led light , led strip , led down light , led tube etc ….

INSTRUCTION :

- For indoor application, can meet IP65 waterproof rate.

- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- No naked flame source, such as lighted candles, should be placed on the apparatus.

- Maximum operating ambient for the equipment is 40℃.

- The apparatus should not be used in a confined space such as a bookcase.

- This appliance is not intended for use by persons (including children) with reduced physical,

sensory, or mental capacities, or lack of experience and kno
