18.5kw Easy Operation Deck Roll Forming Machine For Galvanized Steel Sheet
Customized 3Phase 60Hz Deck Roll Forming Machine for Galvanized Steel Sheet
Introduction:
The metal deck forming machine is aided and optimized by computer. The metal deck produced by this machine has high strength with big wavelength. Used on high buildings , it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economizes steel and cuts down investment accordingly.
·Professional designing for manufactures decking steel.
·Automatically continually manufactures high quality product with PLC.
·Easy operation : Directly Input the data on the touch screen.
·Customers decide the profile of products.
·Saving time and cost owing to high speed running with hydraulic system.
Technical Parameters:
| Material Spec | Galvanized steel sheet |
| Thickness of Coil Sheet | 0.8 --1.2 mm |
| Main Motor Power | 18.5kw |
| Forming Speed | 10--12m/min |
| Hydraulic Station Power | 3kw |
| Quantity of Stands | About 24 groups |
| Hydraulic Pressure | 10~12Mpa |
| Controlling System | PLC |
| Index Error of Length | 10m±2mm |
| Total Weight | About 1800kg |
| Voltage | 380V 3 phase 60Hz or at buyer’s requirement |
Standard Equipment of Machine:
| Passive uncoiler | 1pc |
| Guiding equipment | 1set |
| Rolling forming equipment | 1set |
| Main body | 1set |
| Post-cut equipment | 1set |
| Hydraulic station | 1pc |
| PLC controlling desk | 1pc |
| Supporter table | 2pc |
| Security cover (optional) | 1set |
The profile drawing:
Advantage:
1. We use Automatic control software to manage productive information.
2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4.First in quality
5.First in time
6.First in price
7.First in services
Working flow:

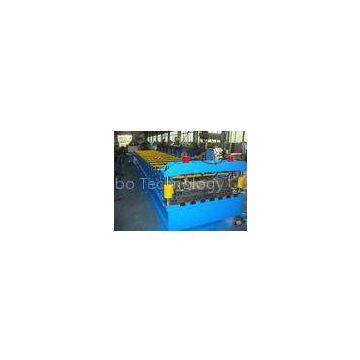

Photo of main roll forming machine:
Output table and manual decoiler:
Sample:
Factory scene:
Product certificates:
