Home > Products > Triac Dimmable Led Driver > Isolated Leading Edge EN 55015 Triac Dimming Led Downlight Driver 700Ma 16W 230V AC

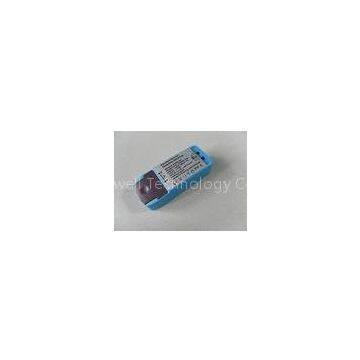

Isolated Leading Edge EN 55015 Triac Dimming Led Downlight Driver 700Ma 16W 230V AC

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	STARWELL		Place of Origin	China
Model Number	PE296B1670

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

Isolated Leading Edge EN 55015 Triac Dimming Led Downlight Driver 700Ma 16W 230V AC

Short Features :

> Type : Trailing Edge & Leading Edge Dimmable Led Driver , Triac Dimming Led Driver

> Output type : constant current

> input voltage range : 90-140VAC / 170-250Vac

> output : 12~24VDC 700Ma 16W

> Model : PE296B1670

> Effiency : > 90%

> PF : > 0.95

> Ripple and Noise : 100mV maximum

> Net Weight : 200g

> Dimensiont : 129(H)*44(W)*28(H)mm

> Certificate : SAA , C-tick , UL , CE , FCC , GS , CB , KC certificates.

> Safety protection : over load, over voltage, short ciruict, open load protection.

Specifications

Input Rated Voltage :	90~140Vac / 170~250Vac
Input Frequency Range:	47Hz~63Hz
Input Inrush Current :	1.8A max
Efficiency :	85%(MIN)at Rated Voltage
Output :	12~24V 700MA
Output power :	16W
Ripple and Noise :	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time:	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection.
Leakage Current:	<5mA
Output typer:	Constant current
Isolation rate:	isolation
Diming function:	Triac dimming funciton
Certificate:	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application:	For led light, led strip, led down light, led tube etc….

MODEL LIST:
