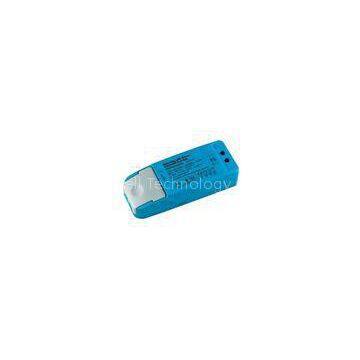

Triac Dimming 500Ma Constant Voltage Led Tube Driver 36V 24W , EN61347-2-13
Short Features :
> Model : PE296B2455
> Type : Triac Dimmable Led Driver , Constant Current Led Driver
> input voltage range : 90-140VAC / 170-250Vac
> output : 25~42VDC 0~550Ma 24W
> Output type : constant current
> Effiency : > 90%
> PF : > 0.95
> Ripple and Noise : 100mV maximum
> Net Weight : 200g
> Dimensiont : 129(H)*44(W)*28(H)mm
> Certificate : SAA , C-tick , UL , CE , FCC , GS , CB , KC certificates.
> Safety protection : over load, over voltage, short ciruict, open load protection.
Specifications
|
Input Rated Voltage : |
90~140Vac / 170~250Vac |
|
Input Frequency Range: |
47Hz~63Hz |
|
Input Inrush Current : |
1.8A max |
|
Efficiency : |
85%(MIN)at Rated Voltage |
|
Output : |
25~42V 550MA |
|
Output power : |
24W |
|
Ripple and Noise : |
<150Mv at full road with 20MHz bandwidth |
|
Turn On Delay Time: |
<3S (AC:110V and full load) |
|
Safety protection : |
over voltage and current protection. |
|
Leakage Current: |
<5mA |
|
Output typer: |
Constant current |
|
Isolation rate: |
isolation |
|
Diming function: |
Triac dimming funciton |
|
Certificate: |
CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK |
|
Safety Standard : |
EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006 |
|
Application: |
For led light, led strip, led down light, led tube etc…. |
MODEL LIST:
|
TRIAC DIMMABLE LED DRIVER |
||||||||
|
Series |
Model |
Input Voltage |
Power |
Output Voltage |
Output |
Power |
Dimming range |
Dimension |
|
PE294 |
PE294B0735 |
90~140V |
7W |
12-24V DC |
0-350mA |
0.95 |
1~100% |
98*39*26 |
|
PE294B1230 |
12W |
25-42V DC |
0-300mA |
0.95 |
1~100% |
98*39*26 |
||
|
PE294B1270 |
12W |
6-15V DC |
0-700mA |
0.95 |
1~100% |
98*39*26 |
||
|
PE296 |
PE296B0735 |
90~140V |
7W |
