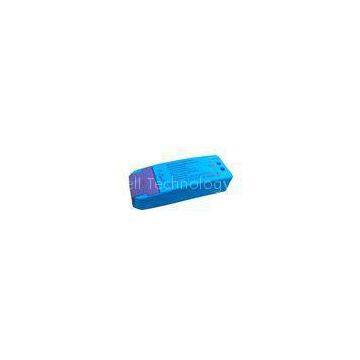

20V 500Ma 18W Triac Dimmable Constant Current Led Driver For LED Light

Name: 20V 500Ma 18W Triac Dimmable Constant Current Led Driver For LED Light
Brand: STARWELL
SKU: 148974914
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

STARWELL

Place of Origin:

China

Model Number:

PE296B1850

Shenzhen Starwell Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name STARWELL

Place of Origin China

Model Number PE296B1850

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

20V 500Ma 18W Triac Dimmable Constant Current Led Driver For LED Light

Short Features :

> Type : Triac Dimmable Led Driver , Constant Current Led Driver

> input voltage range : 90-140VAC / 170-250Vac

> output : 18~32VDC 500Ma 18W

> Model : PE296B1850

> Output type : constant current

> Effiency : > 90%

> PF : > 0.95

> Ripple and Noise : 100mV maximum

> Dimensiont : 129(H)*44(W)*28(H)mm

> Net Weight : 200g

> Certificate : SAA , C-tick , UL , CE , FCC , GS , CB , KC certificates.

> Safety protection : over load, over voltage, short ciruict, open load protection.

Specifications

Input Rated Voltage :	90~140Vac / 170~250Vac
Input Frequency Range:	47Hz~63Hz
Input Inrush Current :	1.8A max
Efficiency :	85%(MIN)at Rated Voltage
Output :	18~32V 500MA
Output power :	18W
Ripple and Noise :	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time:	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection.
Leakage Current:	<5mA
Output typer:	Constant current
Isolation rate:	isolation
Diming function:	Triac dimming funciton
Certificate:	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application:	For led light, led strip, led down light, led tube etc….

MODEL LIST:
