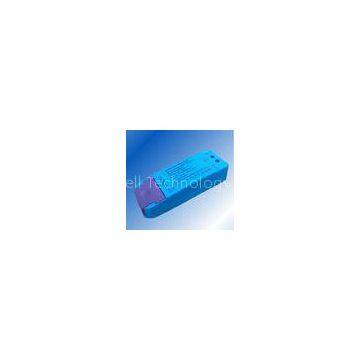

Waterproof Single Voltage Triac Dimmable Led Driver 700Ma 6V 12W IP64

Name: Waterproof Single Voltage Triac Dimmable Led Driver 700Ma 6V 12W IP64
Brand: STARWELL
SKU: 148974662
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

STARWELL

Place of Origin:

China

Model Number:

PE294B1270

Shenzhen Starwell Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name STARWELL

Place of Origin China

Model Number PE294B1270

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

Waterproof Single Voltage Triac Dimmable Led Driver 700Ma 6V 12W IP64

Short Features :

> Type : Trailing Edge Triac Dimmable Led Driver

> input voltage range : 90-140VAC / 170-250Vac

> output : 25~42VDC 300mA Max 12W / 6~15VDC 700Ma max 12W

> Effiency : 90% minimum

> PF : >0.95

> Ripple and Noise : 100mV maximum

> IP rate : IP64

> Output type : constant current

> Net Weight : 200g

> Dimensiont : 98(H)*39(W)*26(H)mm

> Certificate : SAA , C-tick , UL , CE , FCC , GS , CB , KC certificates.

> Safety protection : over load, over voltage, short ciruict, open load protection.

Specifications

Input Rated Voltage :	90~140VAC / 170~250Vac
Input Frequency Range:	47Hz~63Hz
Input Inrush Current :	1.8A max
Efficiency :	85%(MIN)at Rated Voltage
Output :	25~42VDC 300mA Max / 6~15VDC 700Ma max
Output power :	12W
Ripple and Noise :	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time:	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection.
Leakage Current:	<5mA
Output typer:	Constant current
Isolation rate:	isolation
Diming function:	Triac dimming funciton
Certificate:	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application:	For led light, led strip, led down light, led tube etc….
