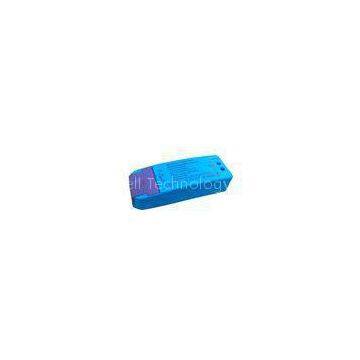

Waterproof Triac Dimmable 350Ma Led Tube Driver DC 12V - 24V 7W Low Power

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	STARWELL		Place of Origin	China
Model Number	PE296B0735

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

Waterproof Triac Dimmable 350Ma Led Tube Driver DC 12V - 24V 7W Low Power

Short Features :

> Type : Trailing Edge Triac Dimmable Led Driver

> Output type : constant current

> input voltage range : 90-140VAC / 170-250Vac

> output : 12~24VDC 350A Max 7W

> Effiency : 90% minimum

> PF : >0.95

> Ripple and Noise : 100mV maximum

> IP rate : IP64

> Net Weight : 200g

> Dimensiont : 129(H)*44(W)*28(H)mm

> Certificate : SAA , C-tick , UL , CE , FCC , GS , CB , KC certificates.

> Safety protection : over load, over voltage, short ciruict, open load protection.

Specifications

Input Rated Voltage :	90~140VAC / 170~250Vac
Input Frequency Range:	47Hz~63Hz
Input Inrush Current :	1.8A max
Efficiency :	85%(MIN)at Rated Voltage
Output :	12~24V 0~350MA
Output power :	7W
Ripple and Noise :	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time:	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection.
Leakage Current:	<5mA
Output typer:	Constant current
Isolation rate:	isolation
Diming function:	Triac dimming funciton
Certificate:	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application:	For led light, led strip, led down light, led tube etc….

MODEL LIST:
