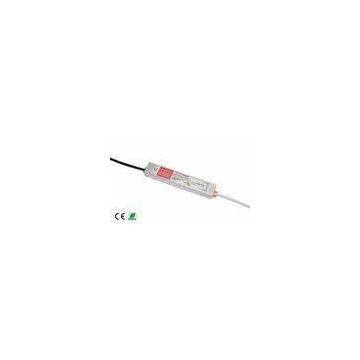

300Ma 1W 3V Constant Current Waterproof Led Driver IP67 SAA Approval

Shenzhen Starwell Technology Co., Ltd.
300Ma 1W 3V Constant Current Waterproof Led Driver IP67 SAA Approval thumbnail-1
300Ma 1W 3V Constant Current Waterproof Led Driver IP67 SAA Approval photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
STARWELL
Place of Origin:
China
Model Number:
WTF-E04300A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name STARWELL
Place of Origin China
Model Number WTF-E04300A
Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

300Ma 1W 3V Constant Current Waterproof Led Driver IP67 SAA Approval

Short Features  :

> input voltage range : 100~240VAC

> output : 2 - 4 V 300Ma 1W

> Ripple and Noise : 200mV maximum

> Output type : constant current

> material : metal case

> Gross Weight : 100g

> Dimension : 60(H) * 30(W) * 20(H)mm

> Effiency : 85% minimum

> PF :  > 0.90

> Certificate : UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates .

> Safety protection : over load , over voltage , short ciruict , open load protection .

Specifications

Input Rated Voltage :

100Vac~240Vac

Input Frequency Range :

47Hz~63Hz

Input Inrush Current :

1.8A max

Efficiency  :

85%(MIN)at Rated Voltage

Output :

2 - 4 V 300Ma 1W

Output power :

1W

Ripple and Noise :

<150Mv at full road with 20MHz bandwidth

Turn On Delay Time :

<3S  (AC:110V and full load)

Safety protection :

over voltage and current protection.

Leakage Current :

<5mA

Output typer :

Constant voltage

Operating Temperature :

0°C----+60°C

Storage Temperature :

-20°C----+85°C

Certificate :

CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK

Safety Standard :

EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006

Application :

For led light , led strip , led down light etc….

MODEL LIST  :

CONSTANT CURRENT IP 67 LED DRIVER
Model Input Voltage Output Power Output Voltage Output Current Power Factor Dimension
WTF-E04300A 100-240V AC 1*3W 2-4V 300mA 0.95 60*30*20mm
WTF-E12300A 100-240V AC 3*1W 6-12V 300mA 0.95 60*30*20mm
WTF-E04700A 100-240V AC 1*3W 2-4V 700mA 0.95 60*30*20mm
WTF-E30300A 100-240V AC 5-8*1W 15-30V 300mA 0.95 60*30*20mm
WTF-E36300A 100-240V AC 8-10*1W 21-36V 300mA 0.95 65*30*20mm
WTF-E40330A 100-240V AC 10-12*1W 24-40V 330mA 0.95 65*30*20mm
WTF-E21600A 100-240V AC 13W 12-21V 600mA 0.95 75*30*20mm
WTF-E65300A 100-240V AC 12-18*1W 36-65V 300mA 0.95 120*30*20mm
WTF-E90300A 100-240V AC 18-25*1W 54-90V 300mA
