Certification:CE, FCC

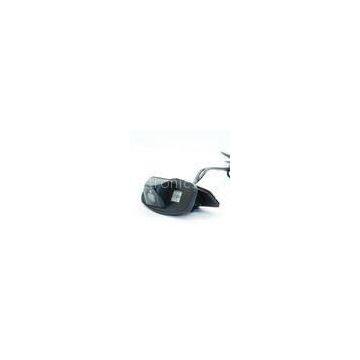

Plastic High Resolution Vehicle Rear View Camera For Honda CRV , 648 x 488 pixels
Quick Detail:
Model Number : Honda CRV / 2009 Odyssey
Type : Honda Rear View Camera
Sensor : 3030 / 1089 / 7070
Resolution : 420 TV Lines
Effective Pixels : 648 x 488 pixels
Lens Angle : 170°
TV System : PAL / NYSC
White Balance / BLC / AGC : Auto
Place of Origin: Shenzhen
Description:
|
Model No. |
Honda CRV / 2009 Odyssey |
|
Power supply |
DC 12V |
|
Working Current |
150 mA |
|
Lens |
f=2.5mm F=2.0 |
|
Lens angle |
170 degree |
|
Connection |
RCA / 4 PIN DIN |
|
Gamma Consumption |
0.45 |
|
Anti-vibration |
10 g |
|
Effective Pixels |
648 x 488 pixels |
1 . Scanning System:2:1 Interlace
2 . Sync. System: Internal
3 . Resolution:420 TV Lines or 480 TV Lines
Applications
Fit for Honda CRV / 2009 Odyssey
Help Parking and Reversing
Connect to the display of car or add a rear view mirror display
Specifications :
|
Sensor |
PC 3089 / 3030 / 7070 |
|
Sensing Area |
3.6mm x 2.7mm |
|
Effective Pixels |
648 x 488 pixels |
|
Minimum Illumination |
0.3 Lux (day), 0 Lux (with IR) |
|
Resolution |
480 TV Lines |
|
Electronic Shutter (Shutter Speed ) |
1/50(PAL)/1/60(NTSC)～1/100,000s |
|
Video Output |
1.0vp-p, 75 Ohm |
|
S/N Ratio |
Better than 48 dB |
|
White Balance |
Auto |
|
Gain Control / Exposure Control |
Auto |
|
Power Supply |
DC 12V |
|
Storage Temperature |
-30°C~80°C, RH 95% MAX. |
|
Operating Temperature |
-20°C~70°C, RH 95% MAX. |
Competitive advantages:
High Definition
Night Vision
170 Degree Angle Lens
Auto BLC / AGC
Competitive Price
With LEDS
