Super Pressure Trapezium Grinding Mill

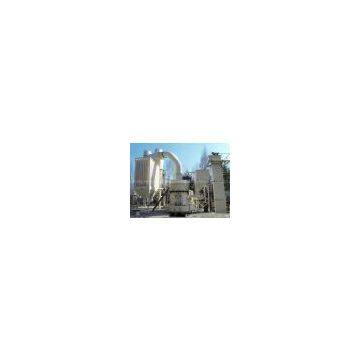

TGM Series Super Pressure Trapezium Grinding Mill mainly consists of mainframe, speed reducer, powder seperator, blower, bag filter, pipes, powder collector, motor, etc. The peripheral equipments are jaw crusher, bucket elevator, feeder, hopper, electric control panel, etc.,TGM Series Super Pressure Trapezium Mill is widely used in metallurgy, manufacture of building materials, chemical industry, minig industry, etc.

TGM Series Super Pressure Trapezium Grinding Mill is suitable for profession minerals materials such as metallurgy, building materials, chemical industry, mine, highway construction, water conservation water and electricity, fire-proof material, steel and iron powder, quartz, feldspar, calcite, talc, barite, fluorspar, rare earth, marble, ceramic, bauxite, iron ore, copper mine, oxidized iron oxide red, zirconium England granulated substance, gangue, cement clinker, activated charcoal, dolomite, granite, garnet, oxidized iron oxide yellow, chemical fertilizer, duplicate Hefei, pulverized coal ash, coal, water chestnut beautiful granulated substance, oxidized chrome green, gold ore, red mud, clay, kleit, Jiao Tan, gangue, porcelain clay, kyanite, fluorine stone, bentonite, Maifan rock, shale, basalt, gypsum, graphite, silicon carbide, thermal insulation material etc.which are materails with Moh's hardness lower than 9 and humidity less than 6%.

TGM Series Super Pressure Trapezium Grinding Mill Features:

1.The roller and grinding ring of the trapezium grinding mill are designed in inverted trapezium with different diameter, which reduces the materials slip velocity between roller and grinding ring, extend grinding time, and enhance crushing effect.

2.The pressing springs have the functions of balancing and pressure increasing; the flexible connection can make the mill stable, decrease the shocking and avoid sympathetic vibration.

3.The main engine and the Choosing powder machine have soft joint, Damping spring and seal belt are not only reduce the vibration and the noise, also has avoided resonating.

4.High density, high accuracy impeller installment.

5.Highly effective energy conservation centrifugal blower, the efficiency of energy saving and high efficient centrifugal blower is as high as 83%. The air blowe plays a very important role in the pulverizer entire generating process. The trapezoid rubs uses the highly effective impeller type energy conservation air blower, the efficiency enhances greatly compared to the straight blade type air blower.

6.Compared with romond mill, this patent product caused to gap adjustment between choosing powder machine's leaf blade and the shell more convenient, quickly and greatly increased the end products' precision.

7.The diameters of each part of rollers and rings are different, the upper part is big and the lower part is small, then they formed a trapezium form. This form can reduce materials' sliding speed downwards and prolong the grinding time for materials, thus the grinding efficiency is increased.

8.Super Pressure Trapezium Grinder Mill like a compresion spring that can balance and increase press,

9.Super Pressure Trapezium Grinder Mill have the function of balance and decreasing press.

10.The forming resident joint keeps smooth and steady, and can avoid resonance.The impeller adjusting device is quick and convenient.
