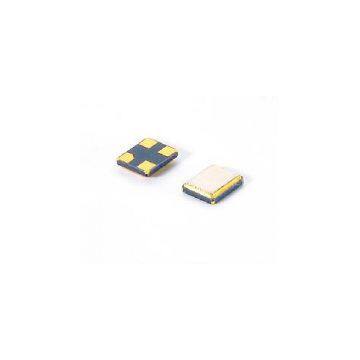

37.4MHz Smd 2.0*1.6 Quartz Crystal Resonator

FEATURE

● Rugged AT-cut crystal construction.

● Miniature 2.0×1.6mm ceramic package.

● Designed for automatic mounting and reflow soldering.

● Embossed taping specification.

● Pb-free and RoHS/Green compliant.

APPLICATIONS

● Ideally suited designed for Bluetooth wireless communication sets, HDD,DSN, PDA,

GPS,Digital Tuner,Wireless LAN and mobile phone.

●Electrical Specifications

Holder Type:2.0x1.6mm Ceramic Surface Mount

Frequency Range:24.000MHz to 54.000MHz

Frequency Tolerance（△F）（at25℃）:±10ppm to ±30ppm

Frequency Drift:±10ppm to ±30ppm※(See Notes)

Operating Temperature Range:-20℃ - +70℃ / -40℃ - +85℃

Storage Temperature Range:-40℃ - +85℃ /-55℃ - +125℃

Aging（25℃）:±3ppm/ year max.

Shunt Capacitance（C0）:3pF max.

Drive Level:10μw (100μW max.)

Insulaton Resistance（Rs）:500 Megaohms Minimum at D.C100V

Load Capacitance（CL）:Suggested by customer

※Notes:±10，±20，±30ppm (-20℃ to +70℃)

±20，±30，±50ppm (-40℃ to +85℃) or depends on customer
