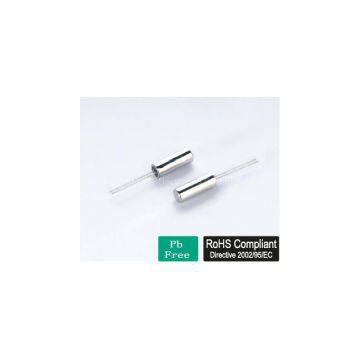

3*8 Tuning fork (KHz) crystal resonator 38.000KHz
- 0 Kilogram / Kilograms per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
3*8 Tuning fork (KHz) crystal resonator 38.400KHz
-
2*6 (KHz) Tuning fork quartz crystal resonator 130KHz
-
150KHz 2*6 (KHz) Tuning fork quartz crystal resonator
-
32.768KHz 2*6 (KHz) Tuning fork quartz crystal resonator
-
2*6 (KHz) Tuning fork quartz crystal resonator 75KHz
-
2*6 (KHz) Tuning fork quartz crystal resonator 40KHz
Product Details
| Place of Origin | China | |
| Model Number | 3*8 Tuning fork 38.000KHz |
Product Description
FEATURE
● Wide Frequency range.
● High shock tolerance.
● Small size.
● Reliable frequency stability.
● Pb-free and RoHS/Green compliant.
APPLICATIONS
● Permits use as a clock source for communication equipment, AV
equipments,OA equipment,measuring instruments and various of clocks.
●Electrical Specifications
Holder Type:Turning Fork 308(KHZ)
Frequency Range:30.000KHZ to 200.000KHZ
Frequency Tolerance（△F）（at25℃）:±20ppm to Maximum
Parabolic curvature constant:-0.042ppm /（△℃）2Maximum
Q - factor:50000 Minimum
Operating Temperature Range:-10℃ to +60℃
Aging（at 25℃）:±5ppm/ year Maximum
Storage Temperature Range:-40℃ to +85℃
Shunt Capacitance（C0）:1.6PF Typical，2pF Maximum
Motional Capacitance（C1）:3.0fF Typical
Drive Level:1μW Maximum
Insulaton Resistance（Rs）:500 Megaohms Minimum at 100VD.C
Load Capacitance（CL）:Suggested by customer
