ASME B163 B677 Round Water Bending Seamless Stainless Steel U Tube Schedule 5

Delivery Time:15 DAY AND DEMEND ON THE QUANTITY
Certification:GOST9941-81,ISO 9001

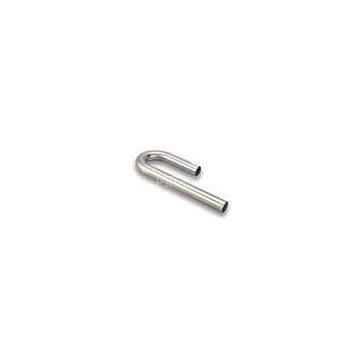

Stainless Steel U Bend Tube ASME B163 B677 N8904 / 904L Pickled and Annealed & Plain End

Detailed Product Description

Applications The common application fields are:

heat exchangers (condensers, evaporators, sea water desalinators) chemical and petrochemical industries food processing and refrigeration industries

Technical Specifications

U-bent tubes are manufactured according to the technical specifications requested by customers:

Outside diameter of the tube: 6 ÷ 90 mm. Maximum overall length: > 26 m. Bending radius (min.): 1,5 × tube diameter. Bending radius (max.): 1200 mm. Heat treatment(by Joule effect on bent area) in inner and outer inert atmosphere. Anti oxidation surface treatment(with protective oils). Trimming and deburring of the ends. Internal cleaningand caps insertion. Packing in custom racks.

The U-Bend Tube Comply With The Following Standards:

1. ASTM A688/ASME SA688

2. ASTM A803/ASME SA803

3. ASTM A556/ASME SA556

Steel Grade:

Ferrite	Austenite	Duplex	Super Duplex	Ni-Alloys	Titanium
TP410 TP405 S44400 S44660 TP430	TP304/304L TP316/316L TP316Ti TP317/317L TP321 TP347	S31803 S32205 S32304	S32750 S32760	N06600 N08020 N00880 N08825 N08904	Gr.2
