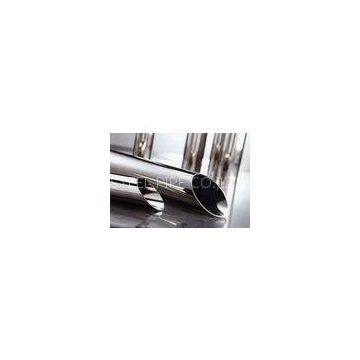

OEM / Custom Stainless Steel Sanitary Tubing ASTM A270 TP304 / 304L TP316 / 316L
Allied Rainbow Group’s sanitary tubing exceeds ASTM A270 S2 and 3A specifications and most user
specifications. It is manufactured from the finest quality stainless steel materials made exclusively to the
Allied Rainbow melt criteria and formed by the Allied Rainbow Micro-Weld™ process to assure weld seam
integrity and industry leading ID and OD finishes to the low Ra values demanded by Allied Rainbow Group’s
customers. Allied Rainbow Group leads the industry in manufacturing the highest quality welded sanitary
tubing, backed with technical expertise, advanced manufacturing and polishing capabilities and unmatched
service before and after the sale. All standard sanitary tubing sizes are available in 1/2\" (12.7 mm) to 8\"
(203.2 mm) OD in stock 20\' (6.1 m) lengths.
Chemical Composition:
|
Elements |
304L(wt%) |
316L (wt%) |
|
(C) Carbon, max |
0.035 |
0.035 |
|
(Mn) Manganese, max |
2.00 |
2.00 |
|
(P) Phosphorus, max |
0.040 |
0.040 |
|
(S) Sulfur, max |
0.030 |
0.030 |
|
(Si) Silicon, max |
0.75 |
0.75 |
|
(Ni) Nickel |
8.0 - 13.0 |
10.0 - 15.0 |
|
(Cr) Chromium |
18.0 - 20.0 |
16.0 - 18.0 |
|
(Mo) Molybdenum |
N/A |
2.0 - 3.0 |
|
(Fe) Iron |
Bal. |
Bal. |
|
(Cu) Copper |
N/A |
N/A |
|
(N) Nitrogen |
N/A |
N/A |
Dimensional Tolerences
all dimensions in inches (mm)
|
Size OD |
Nominal Wall |
Outside Diameter |
Length |
Wall |
|
1/2\" (12.7) |
0.065\" (1.65)/0.049\" (1.25) |
0.005 (0.13) |
+1/8\" (3.18) - 0 |
10.0% |
|
3/4\" (19.1) |
0.065\" (1.65)/0.049\" (1.25) |
0.005 (0.13) |
+1/8\" (3.18) - 0 |
10.0% |
|
1\" (25.4) |
0.065\" (1.65)/0.049\" (1.25) |
0.005 (0.13) |
+1/8\" (3.18) - 0 |
10.0% |
|
1-1/2\" (38.1) |
0.065\" (1.65)/0.049\" (1.25) |
0.008\" (0.20) |
+1/8\" (3.18) - 0 |
10.0% |
|
2\" (50.8) |
0.065\" (1.65)/0.049\" (1.25) |
0.008\" (0.20) |
+1/8\" (3.18) - 0 |
10.0% |
|
2-1/2\" (63.5) |
0.065\" (1.65) |
0.010\" (0.25) |
+1/8\" (3.18) - 0 |
