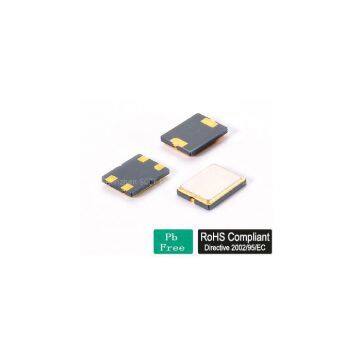

SMD 5*7 Quartz Crystal Resonator 6.7458MHz

FEATURE

● Rugged AT-cut crystal construction.

● Extremely compact SMD package.

● High precision characteristic covering up to high frequency range.

● Automatic mounting.

● Embossed taping specification.

● Reflow soldering.

● Pb-free and RoHS/Green compliant.

APPLICATIONS

● Ideally suited designed for disc drives, PCMCIA, PCs and hand-held

electronic products.

●Electrical Specifications

Holder Type:5x7mm Ceramic Surface Mount

Frequency Range:5.500 to 150.000 MHz

Frequency Tolerance（△F）（at25℃）:±10ppm to ±30ppm

Frequency Drift:±10ppm to ±30ppm ※(See Notes)

Operating Temperature Range:-20℃ - +70℃ / -40℃ - +85℃

Storage Temperature Range:-40℃ - +85℃ /-55℃ - +125℃

Aging（25℃）:±3ppm/ year max

Shunt Capacitance（C0）:7pF max.

Drive Level:100μW (300μW max.)

Insulaton Resistance（Rs）:500 Megaohms Minimum at D.C100V

Load Capacitance（CL）:Suggested by customer

※Notes:±10，±20，±30ppm (-20℃ to +70℃)

±20，±30，±50ppm (-40℃ to +85℃) or depends on customer
