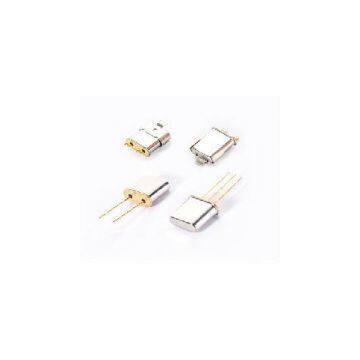

UM-5 Quartz crystal resonator

FOB Price

Negotiable / Kilogram

1000 Kilograms(Min.Order)

Supply Ability 10000000 Kilogram / Kilograms per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCTF		Place of Origin	China
Model Number	UM-5

Product Description

FEATURE

● Resistance weld completely sealed type.

● The frequency stability is good, the reliability is high.

● Copes with high density mounting and is the optimum for mass production.

● Pb-free and RoHS/Green compliant.

APPLICATIONS

● This type crystal units is designed for small mounting space and

high Stability.It can be used in mobile communication(cordiess phone,

pagersBP).Also have the best ability against shock.

●Electrical Specifications

Holder Type:UM - 5

Frequency Range:10.000 to 100 MHZ

Frequency Tolerance（△F）（at25℃）:±10ppm to ±30ppm

Frequency Drift:±10ppm to ±30ppm※(See Notes)

Operating Temperature Range:-20℃ - +70℃ / -40℃ - +85℃

Storage Temperature Range:-40℃ - +85℃ / -45℃ - +125℃

Aging（25℃）:±3ppm/ year Maximum

Shunt Capacitance（C0）:7pF maximum

Drive Level:100μW Typical

Insulaton Resistance（Rs）:500 Megaohms Minimum at D.C 100V

Load Capacitance（CL）:Suggested by customer

※Notes:±10，±20，±30ppm (-20℃ to +70℃)

±20，±30，±50ppm (-40℃ to +85℃) or depends on customer
