Home > Products > AC To DC Power Adapter > External AC To DC Power Adapter 100Vac - 240Vac , FCC KC PSE Approved EN60950

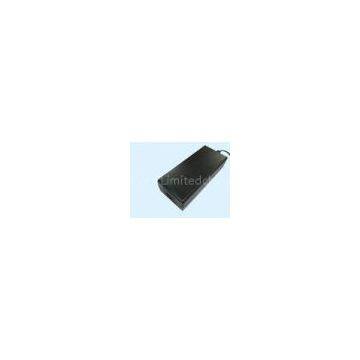

External AC To DC Power Adapter 100Vac - 240Vac , FCC KC PSE Approved EN60950

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Panfore		Place of Origin	China
Model Number	P120D8000

Product Description

Delivery Time:15 days
Certification:CE,ROHS, FCC, UL,CB

External AC To DC Power Adapter 100Vac - 240Vac , FCC KC PSE Approved EN60950

Feature:

. Input Voltage : 90-264Vac
. Power Factor > 0.93
. High Reliability
. LED Indicator For Power On
. Warranty : 2 years
. Approveled By UL , FCC , CB , CE

Description:

Electronics Specification:
Normal Input Voltage :	100~240Vac
AC Input Current:	1.5A
Frequency:	50/60Hz
Normal Output Voltage :	12.0Vdc
Output Voltage Range :	11.4Vdc to 12.6 Vdc
Maximum Output Current :	8.0A
Ripple and Noise :	<300 mVp-p
Line regulation:	±1%
Load regulation:	±5%
Efficiency:	>85%
Over current protection:	Hiccup mode, Auto recovery
Over voltage protection:	Power shutdown, Auto recover
Environment :
Working Temp.:	0~40℃
Working Humidity:	20%~90% RH non-condensing
Storage Temp. & Humidity:	-20℃~85℃, 10%~95% RH
Reliability :
Hi-Pot Testing Voltage :	I/P to O/P : 3.0 (60Sec.) KVac
Safety Standard :	EN60950
EMI Standard :	EN55022B
Safety Approval :
Certificate	UL , FCC , KC, PSE , CE , REACH , Rohs
Mechanical Characteristics :
Size:	150mm65mm35.5mm (LWH)
DC Cable:	1.8M
DC connector:	5.52.112mm, other type connector avaible

Applications:

widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.

Certificates:

Factory Show:
