Certification:CE,ROHS, FCC, UL,CB

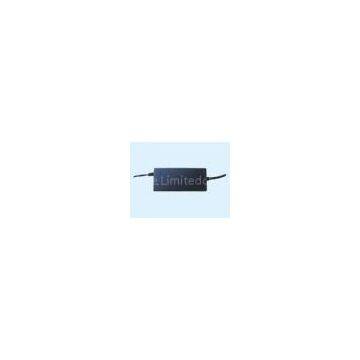

90V - 264V AC To 12V DC Power Adapter For LED Strip , High Reliability With UL And CE
Feature:
. Full Range Input
. High Reliability
. 100% Full Load burn-in
. LED Indicator For Power On
. Warranty : 2 years
. Approvals: UL , FCC , KC, PSE , CE
Description:
Electronics Specification: |
|
Input Voltage Range: | 90~264V ac |
AC input current: | 1.0A |
Frequency: | 50/60Hz |
Normal Output Voltage : | 12.0 Vdc |
| Output Voltage Range : | 11.4Vdc to 12.6 Vdc |
| Maximum Output Current : | 5.0A |
Ripple and Noise : | <120 mVp-p |
Line regulation: | ±1% |
Load regulation: | ±5% |
Efficiency: | >80% |
Over current protection: | Hiccup mode, Auto recovery |
Over voltage protection: | Power shutdown, Auto recover |
Environment : |
|
Working Temp.: | 0~40℃ |
Working Humidity: | 20%~90% RH non-condensing |
Storage Temp. & Humidity: | -20℃~85℃, 10%~95% RH |
Reliability : |
|
Hi-Pot Testing Voltage : | I/P to O/P : 3.0 (60Sec.) KVac |
Safety Standard : | EN60950 |
EMI Standard : | EN55022B |
Safety Approval : |
|
Certificate | UL , FCC , KC, PSE , CE , REACH , Rohs |
Mechanical Characteristics : |
|
Size: | 114mm*50mm*30.5mm (L*W*H) |
DC Cable: | 1.8M |
DC connector: | 5.5*2.1*12mm, other type connector avaible |
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
Certificates:
Factory Show:
