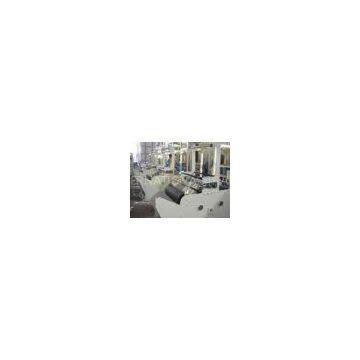

Help Center600-1200mm 11kw PE Head Blown Film Extrusion Machine For Hdpe Ldpe
Related Products
-
PE Rotary Head Plastic Film Blowing Machine 11KW / 22Kw / 15kwUS$ 1 - 10000MOQ: 1 Set -
Automatic LDPE HDPE Plastic Film Blowing Machine With Double HeadUS$ 1 - 10000MOQ: 1 Set
-
Double Colour Striped Plastic Film Blowing Machine For Low Density PolyethyleneUS$ 1 - 10000MOQ: 1 Piece
-
Professional High Speed LDPE Film Blowing Machine 40-70kg/hUS$ 1 - 10000MOQ: 1 Set
-
High Speed Mini Pe Plastic Film Blowing Machine 11kw 22kw 30-50kg/hUS$ 1 - 10000MOQ: 1 Set
Certification:CE
Quick Detail:
CE Certificate 380V 50Hz HERO BRAND 30-80kg/h Single rewinder LDPE HDPE LLDPEDescription:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
OPTIONAL EQUIPMENT:
1)AUTO LOAD 2)AIR COMPRESSOR 3)SPECIAL DIE
4)DIE ROTARY DEVICE 5)BOUBLE SIDES WINDER 6) UP AND DOWN
Specifications:
|
Model |
A50 |
A55 |
A60 |
A65 |
|
Diameter of screw |
φ50 |
φ55 |
φ60 |
φ65 |
|
Diameter of film(mm) |
100-600 |
200-800 |
300-1000 |
400-1200 |
|
Single-face Thickness of film(mm) |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
0.01-0.10 |
|
Max .Extrusion(Kg/h) |
35 |
50 |
65 |
80 |
|
L/D |
26:1 |
26:1 |
26:1 |
26:1 |
|
Power of main motor(kw) |
7.5 |
11 |
15 |
18.5 |
|
Power of Tracion main motor(kw) |
0.75 |
0.75 |
0.75 |
0.75 |
|
Heating Power(kw) |
11 |
13 |
19 |
21 |
|
Outline diameter(L x W x H) (mm) |
4800 x 1900 x 4100 |
5500 x 2100 x 4700 |
6500 x 2300 x 4900 |
6500 x 2500 x 5600 |
|
Weight(T) |
1.5T |
2T |
2.3T |
2.6T |
About Us :
HERO PLASTIC PLASTIC MACHINE CO.,LTD SINCE 1985 found at the ground south along the sea (Namely China packing City ), is a two more than ten years,enterprise specializing in making complete set of series soft packing equipments.Now the company collect an elitist for been gaged inning the design,manufacturing,examining,debugging,The whole staff of enterprise \"Striving for Survival by Quality, Striving for Development by Creative\" encourage bottom,under the concern and support of the commerce colleague,pass by not the gradually become to have to completely design to develop the ability, forerunner the production the craft with the stubborn at full split,complete process the equipments,strict examination means,science the factory hoist that manage.
Facing the new century shangwang person with the acute market competition,and fix attention on the future and have a foothold creative,constants identical.Insist\"Quality Frist,Customer Supreme\"for operate the aim.With the machine product of the high quality,on time the thoughtful service create to set up the good brand,then repay the large customer to support shangwang print machine.Our product is distributed all over the country,and exported to southeast Asia,Midd
