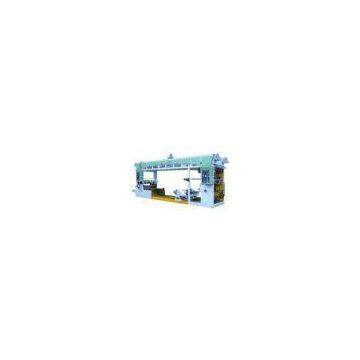

Help CenterPlastic Film High Speed Solventless Lamination Machine 300m/Min
Related Products
-
Automatic Plastic / Paper / Aluminum Foils Dry Laminating Machine 30kwUS$ 1 - 10000MOQ: 1 Set -
Exquisite High Speed Label Slitting And Rewinding Machine 70m/MinUS$ 1 - 10000MOQ: 1 Set
-
Full Automatic Adhesive Tape Rotary Label Die Cutting Machine CEUS$ 1 - 10000MOQ: 1 Piece
-
380v Knitting Plastic Woven Bag Printing Machine 1500-3500pcs/HourUS$ 1 - 10000MOQ: 1 Piece
-
6kw PP Woven Bag Making Machine Plastic Woven Bag Cutting And Sewing MachinesUS$ 1 - 10000MOQ: 1 Set
Certification:CE
I. Main features and technical parameters:
FWD-A-1050 model solvent-less lamination machine is a type of high-speed lamination machine, developed successfully by Wenzhou HERO Machinery Co., Ltd. through independent research based on drawing the experience of European users and learning the most advanced technology of international manufacturer.
FWD-A-1050 model is suitable for high-speed laminating of thin film, paper and aluminum foil etc., which gets the merits of high efficiency, excellent performance and no residual solvents, is one of the most advanced lamination machines in domestic market.
FWD series lamination machine has dealt pertinently in various innovative technologies such as mechanical structure, control method, safety protection and appearance, according to the technique features of the solvent-less complex process itself, in particular, key problems like low initial bonding strength and difficult controlling adhesive-coating quantity.
II. Main Function Features:
This equipment is a kind of high-tech energy-saving environmental protection product, which has been combined working on thin film and light paper materials by using solvent-less adhesive new technology. The type of FWD-A-1050 solvent-less laminating machine specially designed by ourselves is according to international environmental protection energy-saving new technology and our years of experience in manufacturing coating machine. The structure of machine is rational designed, high-precision processed, full-featured system controlled and gets high degree automation. Industrial PLC control, human-machine interface operation and electric parts all have adopted domestic top quality products to ensure the stability of the equipment. Technical parameters (Available material) BOPP, PET, LDPE, LLDPE, OPA, AL, CPP, PAPER
The whole control system is of programmable control. The feature of human-machine interface operation can achieve the automated control, and gets to the international advanced level of similar equipment. PLC is responsible for the data input and preprocessing of tension, speed and production process, and is also responsible for feedback control of machine software. The whole machine consists of first unwinding, adhesive systems, and solvent-less coating, the second unwinding, traction lamination, and rewinding and main control system. The solvent-less coating device has used high-precision five-roll clockwise and anticlockwise differential structure and driven by the servo motor to precisely control the speed and coating amount. Two-component solvent-less adhesive installation is developed by the Eagles and domestic scientific research institution together, and is stable quality, cost-effective.6. The structure of unwinder and rewinder device is of uniaxial single-station and no axis top loading device and is disposed oil hydraulic trolley to easy load and unload film material and configuration EPC edge position correction system automatically.
7. The drive and automatic tension control system of the unwinder and rewinder consists of AC motors, encoders, low-friction cylinder vice, precision potentiometer, AC frequency conversion closed loop vector drives, tension control program modules, with the speed synchronization, tension, taper automatic control functions.
8. Composite device consists of steel roller, adhesive roller, laminating roller, cooling roller etc., AC motor drive, and frequency conversion closed-loop vector control.
9. All passive rollers use rigid aluminum alloy tube (hard anodized surface treatment.
10. The machine has got fine sense of manufacturing and optimization of industrial structure design.
|
Model |
FWD-A-1050 |
|
Laminating Width |
450mm-1050mm |
|
Coating Width |
460mm-1060mm |
|
Reel Diameter |
Φ800mm |
|
Highest Speed |
300m/min |
|
Coating Quantity |
0.8-1.5g/m² |
|
Machine Transmission: |
frequency conversion and servo drive |
|
Machine dimensions (L x W x H) |
4500mmx2400mmx2900mm |
Ⅲ. Main features of FWD series solvent-less lamination machine:
1. Precise controlling of coating quantity, and easy to adjust.
