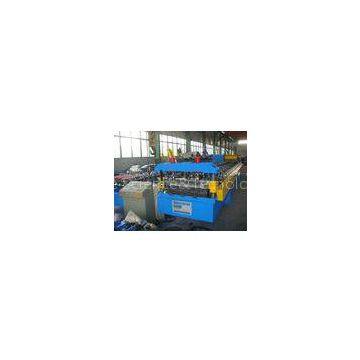

Help Center29-762 Wide Deck Panel Line Automatic Hydraulic Roof Panel
Related Products
-
Galvanized Steel Roof Tile Curving Machine 120 Degree Horizontal TypeNegotiableMOQ: 1 Piece -
Hydraulic Flying Shear Roofing Roll Forming Machine PLC Control Tile PressNegotiableMOQ: 1
-
45Kw Roofing Roll Forming Machine Corrugated Silo Panel Cold Roll FormerNegotiableMOQ: 1 Set
-
Double Layer Wall Panel Forming Machine Sheet Metal Tile Making MachineryNegotiableMOQ: 1 Set
-
Hydraulic IBR / Corrugated Double Roof Panel Forming Machine 0.27 - 0.8mmNegotiableMOQ: 1 Set
Certification:CE
Descrition:
1) Components of the whole line is consist of 10T hydraulic Decoiler motorized pre-cutter, Roll forming machine ,Hydraulic shearing system,hydraulic station ,AMS control cabinet ,outables(2)
2) The demension of the whole machine is approx 13.5m*1.5m*1.4m
3) Electrical:380V,50Hz,3Ph or Accoring to the customer\'s demands
4) Machine structure isTorri stands and I beam welded
5) Total power of the whole line is 24KW
6) Safety cover is available and emergency stop is installed at the cutter and feeding point
Applications:
Wide - deck panels
Roofing panels
Specifications:
Profile drawing
29--190.5--762 Wide-deck Roll Forming Machine
Drawing:
|
1 |
Material thickness |
mm |
0.27-0.8mm Full hard,G550Mpa |
|
2 |
Forming speed |
m/min |
12-35 |
|
3 |
Roll station |
/ |
20 |
|
4 |
Main power |
kw |
11 |
|
5 |
Hydraulic power |
kw |
5.5 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T/10T |
10 hydraulic decoiler ( coil car as option) |
Technical parameter:
1) Main power:11KW motor made in China
2) Roll stations: 20stations
3) single row 1.0 inch chain drive
4)Diameter of shaft:￠70mm
5) Cutting system: hydraulic stop-to-cut
6) cutting Length tolerance:3±1.5mm
7) Working speed:12-- 35m/min(not including the cutting time)
8) Thickness: 0.4mm--0.8mm,G550Mpa tensile galvanized or prepainted steel sheet.
9) Coil input width size:925mm
10) Material of roller:45# steel chromed
11) Material of blade mould:Cr12, quenched 58-62
12) Hydraulic pressure :16Mpa
13) Hydraulic power:3kw
14) Yaskawa inverter made in Japan,11kw
15) Size of machine: approx 8.5m*1.5m*1.4m
16) Chrome infeed guides
17) way of control:AMS controller,model AMS 206
18)Electrical:380V,50Hz,3Ph or Accoring to the customer\'s demands
19)Machine structure:Torri stands (see the picture below)
10t Hydraulic and electrical decoiler and coil cart
Way of decoiling:single head decoiling, hydraulic inner expansion Specification:Φ508×1300mm Range of expansion and contracting:Φ460～Φ520mm Max loading capacity:10T Motor power；7.5KW Hydraulic pressure；12Mpa Can be running forward/ reverse by inverter control Hydraulic motor drive the coil cart forward and reverse Oil cyliner drives the coil car to up and down Ultrasonic wave to control for the decoilerFlow chart
10T hydraulic decoiler--motorized pre-cut--feeding ---roll Forming---stop-to-cut--outables
