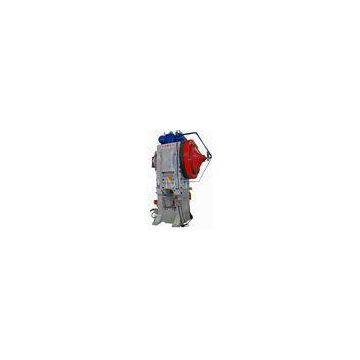

Mechanical Crank Press Machine 630 ton with High Efficiency for Machinery / Ship
Quick Detail:
High Precision High Utilization Of Material High Efficiency Automatic Operation Low Noise And Light VibrationDescription:
MP series hot forging crank press is widely used in areas of : automobile, tractors, internal combustion
machinery,Ship, aviation, mineral machinery, petroleum machinery, hardware and tools.also used in
forging and precise trimming of bulk ferrous and non-ferrous metal
High Precision High Utilization Of Material High Efficiency Automatic Operation Low Noise And Light VibrationApplications:
MP series hot forging crank press is widely used in areas of : automobile, tractors, internal combustion
machinery,Ship, aviation, mineral machinery, petroleum machinery, hardware and tools.also used in
forging and precise trimming of bulk ferrous and non-ferrous metal
Specifications:
MP SERIES OF HOT FORGING PRESS
|
main technical parameters |
MP-630 |
MP-1000 |
MP-1600 |
MP-2000 |
MP-2500 |
|
|
Nominal force(MN) |
6.30 |
10 |
16 |
20 |
25 |
|
|
Stroke of slide (mm)(ram stroke) |
220 |
250 |
280 |
300 |
320 |
|
|
Times of stroke (min-1) |
110 |
100 |
90 |
85 |
80 |
|
|
Maximum shut height |
630 |
700 |
875 |
950 |
1000 |
|
|
bed to bolster adjustment stroke |
11 |
14 |
18 |
20 |
22.5 |
|
|
Dimention of |
Left/right(mm) |
690 |
850 |
1050 |
1210 |
1300 |
|
table(bed) |
Front/back(mm) |
920 |
1120 |
1400 |
1530 |
1700 |
|
Dimention of |
Left/right(mm) |
670 |
820 |
1030 |
1180 |
1260 |
|
slide |
Front/back(mm) |
965 |
936 |
1140 |
1260 |
1380 |
|
Upper ejector |
Type |
mechanical |
mechanical |
mechanical |
mechanical |
mechanical |
|
(lifting device) |
force (KN) |
32 |
