Digital EEG And Mapping System

Digital EEG And Mapping System

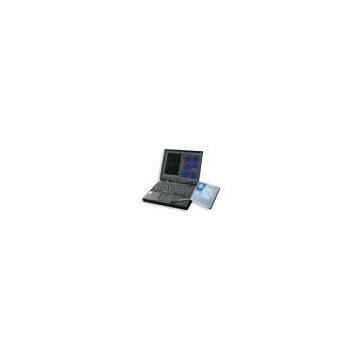

Model: KT88-2400 Digital EEG machine

electroencephagraph

Features

1.Standard 24-channel(2400)

2.The latest intelligent digital EEG amplifier,  which integrates electrode box, amplifier,  filter, A/D. Digital signal transmission enhances  the antijamming ability.

3.10/20 international standard system supports special electrodes, the combination of  13 kinds of standard  leads can be selected (hardware) at real time or changed when uploading (software), support: A1, A2, A1+A2,   A1←→A2.

4.Resistance is displayed in the electrode box and tested in the acquisition course, so that

the physician can adjust the electrode in time.USB interface, coupled with a

laptop computer form a portable EEG system

ECG and RESP

1.Control flashlight automatically and manually

2.The amplitude and frequency of EEG can be measured BEAM, power spectrum,

and all kinds of trend graph The EEG database management, supporting MO or CD-RW archiving

3.The special isolation transformer and optical cable ensure security

Please note the laptop does not included

Optional function

Video monitor system

Sleep module, ECG, EOG, SpO2, EMG, RESP
