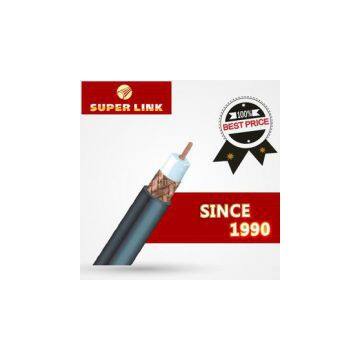

Help CenterLMR400/coaxial Cable/RF Signal Line
Related Products
-
LMR240/coaxial Cable/RF Signal LineUS$ 2.3 - 2.3MOQ: 10000 Pieces -
LMR200/coaxial Cable/RF Signal LineUS$ 2 - 2MOQ: 10000 Pieces
-
LMR195/coaxial Cable/RF Signal LineUS$ 1.7 - 1.7MOQ: 10000 Pieces
-
LMR300/5D-FB/coaxial Cable/RF Signal LineUS$ 3 - 3MOQ: 5000 Pieces
-
Monitoring Line/video Cable/RG59+2CUS$ 1.8 - 1.8MOQ: 10000 Pieces
LMR-400
Construction
Center Conductor: 2.74+0.01mm Bare Copper
Dielectric: 7.24+0.05mmFoam PE
Shield: BONEDED Al Foil/TC Braiding
Braid Coverage: 45%-90%Al
Jacket: 10.29+0.2mm PVC/PE
Jelly/APD Per Customers' Special Requirement
Characteristics
Sparker Test: 4000VAC
Impedance: 50+3 Ohm
Capacitance: 84+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-1000MHz)
Attenuation
Attenuation [@68o F. (20o C.)]
Frequency Maximum Maximum
(MHz)(dB/100 ft.)(dB/100 m)
50 0.9 2.95
150 1.5 4.92
300 2.19 7.2
450 2.7 8.86
500 2.84 9.39
960 4.03 13.22
1500 5.1 16.73
2000 6 19.68
2500 6.8 22.31
5800 10.8 35.5
We can provide the CE, SGS report, there are some products can provide CCC.
Look forward to your call!
