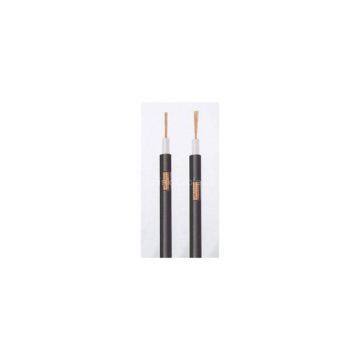

RG59

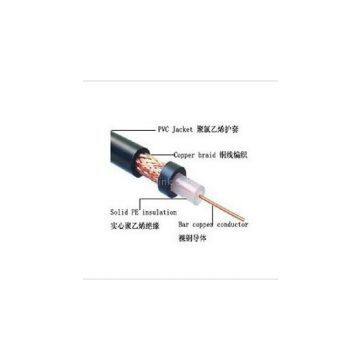

Construction
Center Conductor: 0.81+0.01mm Solid Copper/Copper Clad Steel
Dielectric: 3.66+0.05mmFoam PE
Shield: Al Foil/Bonded Al Foil
Braid Coverage: 40%-95%Al
Jacket: 6.10+0.05mm PVC
Jelly/APD Per Customers' Special Requirement
Characteristics
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 50+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)
Attenuation
Attenuation [@68o F. (20o C.)]
Frequency Maximum Maximum
(MHz) (dB/100 ft.)(dB/100 m)
5 0.86 2.82
55 2.05 6.73
187 3.6 11.81
300 4.45 14.6
450 5.4 17.72
600 6.2 20.34
750 6.97 22.87
865 7.52 24.67
1000 8.12 26.64
1200 8.97 29.4
1450 9.88 32.41
1800 11.81 38.72
2200 13.05 42.78
We can provide the CE, SGS report, there are some products can provide CCC.
Look forward to your call!
