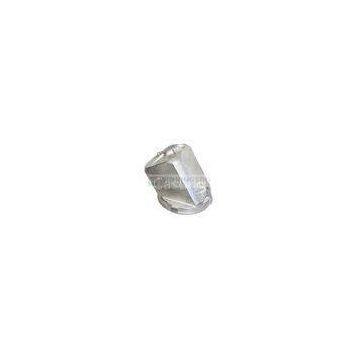

Investment Castings for Stainless Steel ANC4B 1.4408 Explosion Proof Camera Housing

Winnington Casting CO.,
Investment Castings for Stainless Steel ANC4B 1.4408 Explosion Proof Camera Housing thumbnail-1
Investment Castings for Stainless Steel ANC4B 1.4408 Explosion Proof Camera Housing photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Winnington
Place of Origin:
China
Model Number:
stainless steel investment casting 003
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Winnington
Place of Origin China
Model Number stainless steel investment casting 003
Delivery Time:30-90 days
Certification:PED/AD2000

Investment castings for Stainless steel ANC4B (1.4408) explosion proof camera housing .



Quick Detail:

1. Precision castings of an explosion proof camera housing.
2. With shot blasting and electro polishing;
3. Exporting to Europe;
4. Weight: 9kg;
5. Size: 160X150X300mm;
6. PED and ISO9001:2008 certificated foundry;
7. NDT available (Dye test, X ray test etc).
Description:
Precision casting parts of an explosion proof camera housing applied in marine and oil industry, made of corrosion resistant stainless steel material ANC4B ( 1.4408).
We cast various type of materials: stainless steel, carbon steel, duplex alloys, nickel-based materials, and more:

Stainless Steel (70%)

Carbon Steel

Alloy Steel

CF3M (AISI 316L), CF8M (AISI 316), CF8 (AISI 304),CD4MCu, CD4MCuN,ANC20,ANC4B, 1.4408,1.4517, 1.4306, 1.4581,303,  430, 420, 17-4PH, SCS1

and more

1020, 1040, SCS16, SCS14, SCS13, 1.0619, WCB, S355JR, LCC

and more

ANC2,CLA12C,42CrMo,7Q, 8Q,4140,6150

and more

Overview of Lost Wax Process:
The model of the part is made of wax from an aluminum die, then the wax patterns are welded onto the runner system which is also made of wax - it forms a pattern tree or called pattern assembly. Next, the pattern tree will be dipped into ceramic slurry of sand or stucco, with drying process between each coating until the shell is thick enough to hold the weight of molten metal which will be poured later.
Then the Pattern tree with wax in it is going to a high pressure oven which melt the wax out. It forms a hollow in the shell. The shell is preheated before pouring to help fluidity of melton metal. A sand bed is always aside to hold the hot poured shell.
In the following process, the shell is broken and removed, so the castings can be seen now. The castings are then cut off from the metal tree and shot blast/polished/machined to get better tolerance and surface.


Applications:



Pumps
Valves
Pipe Fittings
Automotive
Marine and Oil
Machinery
Power & Energy
Mechanical parts



Specifications:

Material Standards

ASTM,JIS,DIN,BS,MIL

Maximum Casting Size

500*500*350mm

Casting weight range

10g~80kg

Min Wall thickness

1.5-2mm

Casting process type

silica sol lost wax casting

Machining

CNC machining, CNC lathe

Surface finish

polishing, plating;

Tolerances

According to VDG P690

Physical performance

Tensile test, (low temperature) Impact test, Hardness test

Chemical composition test

Spectrometer

NDT service availalbe

Dye test, X ray test etc


Competitive Advantage:

By injecting wax into a permanent-molding die to form a pattern, investment casting get casting parts of good surface quality and became the solution for many complex parts that are required in large quantities.

Winnington One-stop Services
Design Assistance
We assist our customers with concepts, estimating manufacturing costs, manufacturing techniques and material considerations. We are able to participate in upgrading, redesigning, re-evaluating or modernizing existing products to increase performance and/or reduce manufacturing costs.
Tool Making
With in house expertise and tool shop, we have the complete engineering team to create molding / tooling ne
